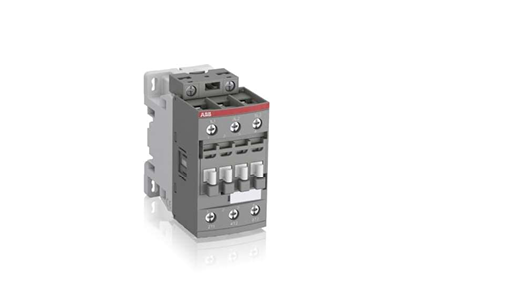

ABB 1SBL277001R1300 contactor

We will arrange delivery within 3-5 days after receiving the payment.

Our express delivery: DHL and FedEx.

Quality packing for each product

Destination country all taxes & duty to be paid by buyer

Only part of the brand and model, if you have other product needs, please contact us.

1. Product Overview

The ABB 1SBL277001R1300 is a standard AC contactor from ABB's S series, suitable for motor control, lighting control, and remote switching of electrical equipment. It features a compact design, high reliability, and excellent electrical performance, making it ideal for long-term operation in industrial and commercial applications. Supports auxiliary contacts and accessory extensions for complex control logic and automation integration.

2. Technical Specifications

Electrical Ratings

• Model: 1SBL277001R1300

• Series: ABB S Series AC Contactor

• Rated Voltage (Ue): 690 V AC

• Rated Current (Ie): 25 A (AC-3 load)

• Control Type: AC Coil

• Coil Rated Voltage (Uc): 230 V AC, 50/60 Hz

• Maximum Operating Voltage: 690 V AC

• Dielectric Strength: 2500 V, 50 Hz, 1 min

• Contact Configuration: 3 NO (normally open)

• Mechanical Life: ≥10,000,000 operations

• Electrical Life (AC-3): ≥200,000 operations

Environmental & Mechanical

• Mounting: DIN rail or panel screw mounting

• Protection Degree: IP20

• Operating Temperature: –25°C … +60°C

• Relative Humidity: 5% … 95%, non-condensing

• Vibration Resistance: Complies with industrial standards

3. Advantages & Key Features

1. High reliability and long lifespan — Mechanical life ≥10,000,000 cycles; electrical life up to 200,000 cycles.

2. Compact design — Saves space and simplifies wiring and maintenance.

3. High-performance electrical ratings — Supports motor control loads up to 25 A.

4. Flexible installation and expandability — Compatible with auxiliary contacts, timers, and overload relays.

5. Suitable for industrial environments — IP20 rating, ideal for industrial, commercial, and building control systems.

6. Fast response and reliable operation — Optimized coil design ensures quick make/break actions.

4. Application Areas

• Industrial AC motor control (pumps, fans, compressors)

• Lighting and HVAC control systems

• Automated production lines and machinery control

• Building automation and control panels

• Distribution and control cabinets

• Small power systems and electromechanical equipment

5. Precautions

1. Verify voltage rating and load current before installation.

2. Follow wiring diagrams and electrical standards to ensure reliable connections.

3. Avoid high temperature, high humidity, dust, or corrosive environments.

4. Always disconnect power before maintenance or replacement.

5. Periodically inspect contactor contacts and coil condition for reliable operation.

6. Install auxiliary contacts or accessories according to manufacturer guidelines to avoid interference with main contacts.

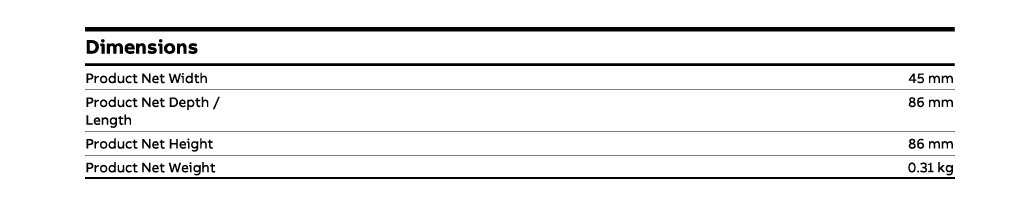

The structure and details of the product：
