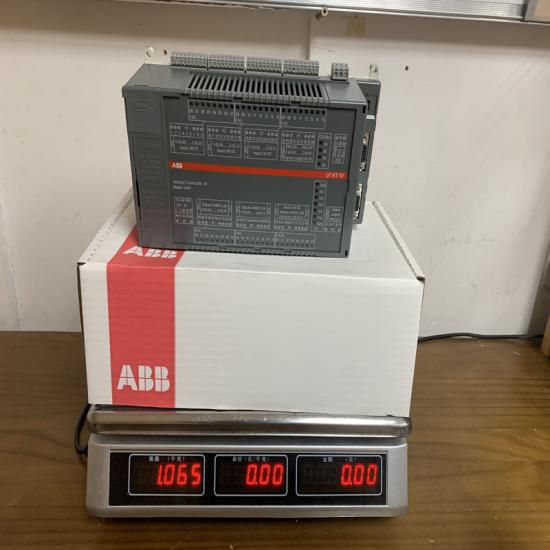

ABB 07KT95 (Order Code: GJR5252800R0100) Control Unit

1. Key Parameters

• Product Model: 07KT95
• Order Code/Part Number: GJR5252800R0100 (unique identifier for procurement and platform compatibility verification)
• Product Series: ABB AC 800M/Symphony Plus Specialized Control Units
• Core Function: Executes high-precision process control (e.g., turbine speed regulation, generator voltage control); processes real-time data from field sensors; communicates with DCS/HMI systems; enables safety-critical control loops
• Processing Performance:
  • CPU: 32-bit floating-point processor (600MHz clock speed; optimized for control algorithms)
  • Control Execution Speed: ≤0.1ms per high-precision control loop (e.g., turbine speed feedback); ≤1ms for multi-variable cascaded loops
  • Memory:
    • Flash Memory: 128MB (for firmware, control programs, and configuration data; non-volatile)
    • RAM: 64MB (for real-time data processing, temporary variables, and loop calculations)
  • Supported Control Functions: Proportional-Integral-Derivative (PID) with anti-windup, cascade control, ratio control, feedforward control, and custom user-defined algorithms (via ABB Control Builder M)
• Input/Output (I/O) Capabilities:
  • Analog Inputs (AI): Supports up to 8 channels (4-20mA, 0-10V DC; 16-bit resolution) for sensor data (e.g., pressure, temperature, speed)
  • Analog Outputs (AO): Supports up to 4 channels (4-20mA, 0-10V DC; 12-bit resolution) for actuator control (e.g., valve positioners, drive speed references)
  • Digital Inputs (DI): 4 channels (24V DC; for status signals like “actuator ready” or “fault”)
  • Digital Outputs (DO): 2 channels (24V DC; for alarms or relay activation)
  • I/O Isolation: 2.5kVrms (between I/O channels and backplane; prevents ground loops and noise interference)
• Communication Interfaces:
  • Backplane Interface: ABB proprietary PRONETA bus (100Mbps full-duplex; for seamless integration with AC 800M/Symphony Plus racks and I/O modules)
  • Ethernet Port: 1× 10/100Base-TX (RJ45; supports Modbus-TCP, IEC 61850 for communication with SCADA, HMI, or protection relays)
  • Serial Port: 1× RS-485 (supports Modbus-RTU for legacy device integration, e.g., older turbine sensors)
• Electrical Specifications:
  • Power Supply (Backplane): 5V DC (from AC 800M/Symphony Plus rack power supply; typical current: 1.5A; maximum current: 2.0A)
  • Power Consumption: ≤10W (total, including processing, I/O, and communication)
  • Surge Protection: IEC 61000-4-5 (±2kV contact discharge; ±4kV air discharge for Ethernet/RS-485 ports)
  • EMC Immunity: Compliant with IEC 61000-6-2 (industrial environment); resistant to electromagnetic interference from motors, drives, and high-voltage equipment
• Mechanical Specifications:
  • Housing Type: Metal-reinforced flame-retardant plastic (UL94 V-0; for EMI shielding and mechanical robustness)
  • Dimensions (W×H×D): 50mm × 100mm × 160mm (2-module width; fits AC 800M/Symphony Plus standard racks)
  • Mounting: Rack-mounted (tool-less snap-in installation; aligns with backplane connectors for power and data)
  • Weight: Approximately 300g
  • LED Indicators:
    • Power (PWR): Green (unit powered on); Red (power fault or under/overvoltage)
    • CPU Status (CPU): Green (normal operation); Amber (high CPU load >85%); Red (CPU fault)
    • Backplane Communication (BUS): Green (PRONETA bus normal); Red (bus fault or disconnection)
    • I/O Status (I/O): Green (all I/O channels normal); Red (I/O fault, e.g., short circuit or open circuit)
    • Ethernet (ETH): Green (link active); Blinking Green (data transmission); Red (link fault)
• Environmental Ratings:
  • Operating Temperature Range: -25℃~+70℃ (-13℉~158℉)
  • Storage Temperature Range: -40℃~+85℃ (-40℉~185℉)
  • Humidity Tolerance: ≤95% RH (non-condensing, 40℃)
  • Vibration Resistance: 10~500Hz, 2g acceleration (IEC 60068-2-6; no processing interruptions or I/O signal loss)
  • Shock Resistance: 30g acceleration (11ms duration, IEC 60068-2-27; maintains structural and functional integrity)
• Compliance Standards: IEC 61131-3 (programmable controllers), IEC 61850 (power system automation), UL 508 (industrial control safety), CE, RoHS

2. Key Features

• Ultra-Fast Control Execution: 600MHz floating-point CPU delivers ≤0.1ms response times for high-precision loops (e.g., turbine speed control), ensuring rapid correction of process deviations—critical for applications where even millisecond delays could cause equipment damage or safety risks.
• Integrated High-Resolution I/O: On-board analog/digital I/O (16-bit AI resolution) eliminates the need for external I/O modules, reducing rack space and wiring complexity. 2.5kVrms isolation between I/O channels prevents ground loops, a common issue in power generation and heavy industrial environments.
• Symphony Plus/AC 800M Compatibility: Seamless plug-and-play integration with both platforms; configuration via ABB Control Builder M software (familiar interface for DCS engineers) simplifies loop setup, I/O mapping, and algorithm tuning—no custom drivers required.
• IEC 61850 Protocol Support: Enables direct communication with modern power system protection relays and smart grid devices, making it ideal for power generation applications (e.g., fossil fuel, nuclear, or renewable energy plants) requiring compliance with utility standards.
• Robust Fault Diagnostics: Built-in diagnostics monitor CPU load, I/O channel health, and communication status. Faults are flagged via LEDs and transmitted to the DCS HMI, enabling predictive maintenance (e.g., replacing a failing sensor before it causes a process shutdown).
• Industrial-Grade Durability: Metal-reinforced housing, wide temperature range (-25℃~+70℃), and surge protection ensure reliable operation in harsh conditions—including oil refineries (corrosive fumes), mining sites (dust/vibration), and power plants (electrical noise).
• Custom Algorithm Support: Allows engineers to implement user-defined control logic (via structured text or function blocks) for specialized processes (e.g., custom feedforward control for batch chemical reactions), enhancing flexibility beyond standard PID loops.

3. Application Fields

• Power Generation: Primary application—controls critical auxiliary and main processes in:
  • Fossil Fuel Plants: Turbine speed regulation (governor control), generator excitation control (maintaining voltage stability), and boiler feedwater flow control.
  • Nuclear Power Plants: Reactor coolant pump speed control, steam pressure regulation, and safety system actuation (with redundant configurations).
  • Renewable Energy (Wind/Solar): Wind turbine pitch control (optimizing power output based on wind speed) and solar inverter DC voltage regulation.
• Oil & Gas Industry: Manages high-pressure/high-temperature processes in:
  • Refineries: Catalytic cracker temperature control, distillation column pressure regulation, and fuel gas flow control.
  • Offshore Drilling Rigs: Wellhead pressure control (preventing blowouts) and mud pump speed regulation (maintaining drilling fluid consistency).
• Heavy Manufacturing: Controls precision processes in:
  • Steel Mills: Rolling mill speed synchronization (ensuring uniform metal thickness) and blast furnace temperature control.
  • Chemical Plants: Batch reactor temperature/pressure control (for exothermic reactions) and chemical dosing rate regulation (maintaining stoichiometric ratios).
• Marine & Naval Applications: Regulates propulsion and auxiliary systems in:
  • Cargo Ships: Main engine speed control (optimizing fuel efficiency) and generator voltage stabilization.
  • Naval Vessels: Propulsion turbine control and auxiliary pump speed regulation (with ruggedized configurations for saltwater environments).

4. Precautions

• Platform Exclusivity: Use exclusively with ABB Symphony Plus and AC 800M systems. Installation in non-ABB racks (e.g., Siemens PCS 7, Rockwell PlantPAx) will cause backplane communication failure and damage the unit.
• I/O Loading Limits: Do not exceed the maximum current rating of analog outputs (typically 20mA per channel). Overloading I/O channels causes permanent damage to the unit’s internal circuitry.
• Firmware Compatibility: Ensure the unit’s firmware version matches the Symphony Plus/AC 800M DCS firmware (check via Control Builder M). Mismatched firmware leads to protocol errors and incorrect loop execution.
• Wiring Safety:
  • Use shielded twisted-pair cables for analog I/O (minimizes noise pickup). Ground the shield at one end (near the sensor/actuator) to avoid ground loops.
  • Keep I/O wiring at least 30cm away from high-voltage power cables (>1kV) to prevent electromagnetic interference.
• Redundancy Setup: For safety-critical applications (e.g., nuclear power), configure the 07KT95 in a hot-standby redundant pair. Test failover by disconnecting the primary unit—ensure the backup takes over within ≤10ms to avoid process disruption.
• Calibration: Calibrate analog inputs/outputs annually (or per site maintenance schedules) using a precision calibrator. Drifted calibration reduces control accuracy (e.g., incorrect turbine speed readings leading to overspeeding).
• Maintenance Checks: Inspect quarterly:
  • Verify LED status (no red faults; CPU load <85%).
  • Test I/O channels by injecting known signals (e.g., 4mA/20mA for AI) and confirming correct reading in the DCS.
  • Clean the unit’s vents with compressed air (avoid moisture) to prevent overheating—blocked vents cause CPU thermal throttling and slower loop response
