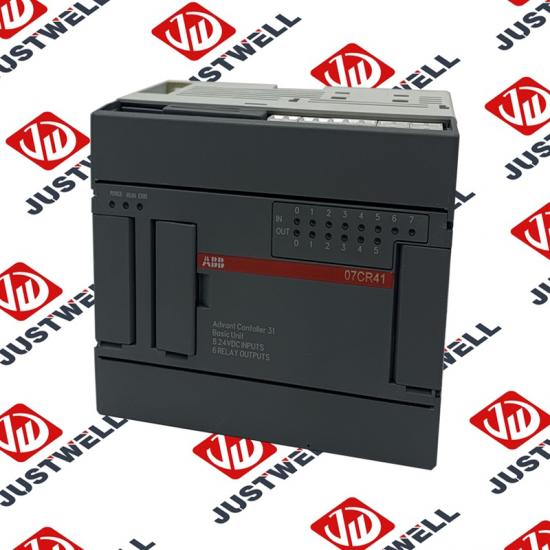

ABB 07CR41 (Order Code: 1SBP260020R1001) Control Unit

1. Key Parameters

• Product Model: 07CR41
• Order Code/Part Number: 1SBP260020R1001 (unique identifier for procurement and platform compatibility verification)
• Product Series: ABB Symphony Plus/AC 800M Power & Process Control Units
• Core Function: Regulates electrical parameters (voltage, current, frequency) for power systems; executes safety-critical control logic; communicates with protection relays and SCADA systems; supports redundant operation for fault tolerance
• Processing Performance:
  • CPU: 32-bit dual-core processor (700MHz clock speed; optimized for parallel execution of control algorithms and communication tasks)
  • Control Execution Speed: ≤0.2ms per electrical control loop (e.g., generator voltage regulation); ≤1ms for multi-variable coordinated control (e.g., grid frequency + power factor)
  • Memory:
    • Flash Memory: 256MB (non-volatile; stores firmware, control programs, and configuration data)
    • RAM: 128MB (high-speed; for real-time data processing, temporary variables, and loop calculations)
  • Supported Control Functions: PID with auto-tuning, voltage/frequency droop control, power factor correction, load sharing, sequence control, and custom logic (via ABB Control Builder M)
• Input/Output (I/O) Capabilities:
  • Analog Inputs (AI): 8 channels (4-20mA, 0-10V DC, or ±10V DC; 16-bit resolution; for sensor data like current transformer (CT) signals, voltage transformer (VT) outputs)
  • Analog Outputs (AO): 4 channels (4-20mA or 0-10V DC; 12-bit resolution; for actuator control like voltage regulators, thyristor drives)
  • Digital Inputs (DI): 8 channels (24V DC; for status signals like “relay tripped,” “breaker closed”)
  • Digital Outputs (DO): 4 channels (24V DC; for triggering alarms, activating contactors, or resetting protection devices)
  • I/O Isolation: 3kVrms (between I/O channels, and between I/O and backplane; critical for protection against high-voltage transients in power systems)
• Communication Interfaces:
  • Backplane Interface: ABB proprietary PRONETA bus (100Mbps full-duplex; seamless integration with Symphony Plus/AC 800M racks and I/O modules)
  • Ethernet Ports: 2× 10/100/1000Base-TX (RJ45; supports IEC 61850 (MMS/GOOSE), Modbus-TCP, DNP3.0 for communication with protection relays, SCADA systems, and smart grid devices)
  • Serial Port: 1× RS-485 (supports Modbus-RTU for legacy equipment like older power meters or turbine controllers)
• Electrical Specifications:
  • Power Supply (Backplane): 5V DC (from Symphony Plus/AC 800M rack power supply; typical current: 1.8A; maximum current: 2.2A)
  • Power Consumption: ≤12W (total, including processing, I/O, and dual Ethernet communication)
  • Surge Protection: IEC 61000-4-5 (±4kV contact discharge; ±8kV air discharge for Ethernet ports; critical for power system environments with frequent voltage spikes)
  • EMC Immunity: Compliant with IEC 61000-6-2 (industrial environment) and IEC 61850-3 (power system automation); resistant to EMI from high-voltage equipment (transformers, switchgear)
• Mechanical Specifications:
  • Housing Type: Metal-reinforced flame-retardant plastic (UL94 V-0; provides EMI shielding and resistance to mechanical impact)
  • Dimensions (W×H×D): 50mm × 100mm × 160mm (2-module width; fits Symphony Plus/AC 800M standard racks)
  • Mounting: Rack-mounted (tool-less snap-in installation; aligns with backplane connectors for power and data)

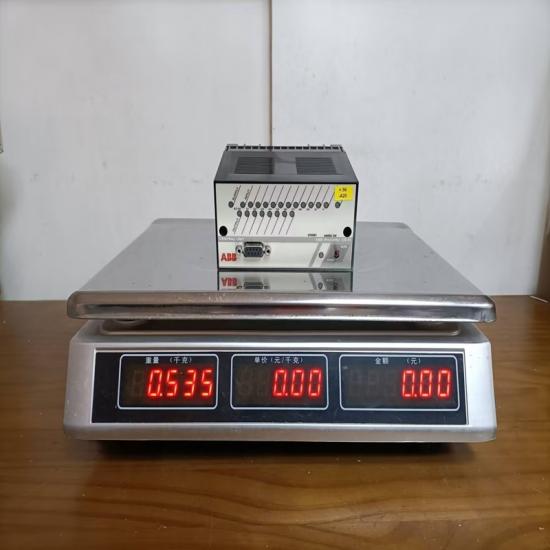

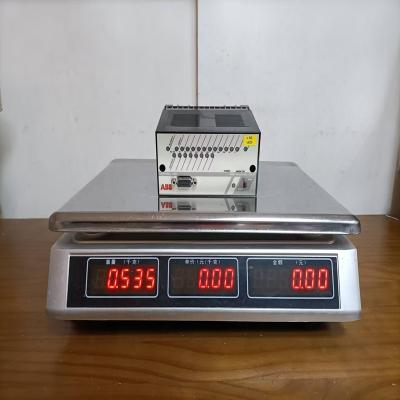

  • Weight: Approximately 320g
  • LED Indicators:
    • Power (PWR): Green (unit powered on); Red (power fault or voltage out of range)
    • CPU Status (CPU): Green (normal operation); Amber (high CPU load >80%); Red (CPU fault)
    • Backplane Communication (BUS): Green (PRONETA bus normal); Red (bus fault or disconnection)
    • I/O Status (I/O): Green (all I/O channels normal); Red (I/O fault, e.g., short circuit, open circuit)
    • Ethernet 1/2 (ETH1/ETH2): Green (link active); Blinking Green (data transmission); Red (link fault)
    • Redundancy (RED): Green (redundancy active, primary unit); Amber (redundancy active, backup unit); Red (redundancy fault)
• Environmental Ratings:
  • Operating Temperature Range: -25℃~+70℃ (-13℉~158℉)
  • Storage Temperature Range: -40℃~+85℃ (-40℉~185℉)
  • Humidity Tolerance: ≤95% RH (non-condensing, 40℃)
  • Vibration Resistance: 10~500Hz, 2g acceleration (IEC 60068-2-6; no processing interruptions or I/O signal loss)
  • Shock Resistance: 30g acceleration (11ms duration, IEC 60068-2-27; maintains structural and functional integrity)
• Compliance Standards: IEC 61131-3 (programmable controllers), IEC 61850 (power system automation), UL 508 (industrial control safety), IEEE C37.20 (switchgear compatibility), CE, RoHS

2. Key Features

• IEC 61850 Protocol Support: Native support for IEC 61850 (MMS for data exchange, GOOSE for fast event messaging) enables seamless integration with modern power system protection relays, smart meters, and grid management platforms—critical for utility-grade applications (e.g., substations, power plants).
• Dual-Core Processing & High-Speed Loops: 700MHz dual-core CPU executes electrical control loops in ≤0.2ms (e.g., generator voltage regulation), ensuring rapid response to grid fluctuations (e.g., sudden load changes) and preventing equipment damage from voltage/current spikes.
• 3kVrms I/O Isolation: Industry-leading isolation between I/O channels and backplane protects the unit from high-voltage transients common in power systems (e.g., switchgear operation, lightning strikes)—a key advantage over standard control units with 2.5kVrms isolation.
• Built-In Redundancy: Supports hot-standby redundancy (primary/backup configuration) with ≤5ms failover time. Automatically synchronizes configuration and process data between units, ensuring zero downtime in mission-critical applications (e.g., nuclear power plant auxiliary control).
• Seamless Symphony Plus/AC 800M Integration: Plug-and-play compatibility with both platforms; configured via ABB Control Builder M software (with pre-built templates for power system control, e.g., generator load sharing). No custom drivers required for communication with ABB protection relays (e.g., REF615).
• Robust Surge & EMI Protection: ±8kV air discharge surge protection and compliance with IEC 61850-3 EMC standards ensure reliable operation in electrically noisy environments (e.g., substations with high-voltage transformers, industrial plants with large motors).
• Flexible Load Sharing & Droop Control: Pre-configured algorithms for generator load sharing (equalizing power output across multiple generators) and voltage/frequency droop control (maintaining grid stability during load variations)—reducing engineering time for power system projects.

3. Application Fields

• Power Generation & Transmission: Primary application—controls electrical systems in:
  • Fossil Fuel Power Plants: Generator voltage regulation (excitation control), frequency droop control, and load sharing between multiple generators; communication with turbine control systems and grid SCADA.
  • Renewable Energy (Wind/Solar): Solar inverter DC voltage regulation, wind turbine generator power factor correction, and integration with grid management systems via IEC 61850.
  • Substations: Control of medium-voltage switchgear, transformer tap changers, and reactive power compensation devices (e.g., capacitor banks); communication with protection relays (e.g., ABB REF615) for fault detection.
• Heavy Industrial Power Systems: Manages on-site power generation and distribution in:
  • Steel Mills: Control of on-site generators (maintaining stable voltage for arc furnaces), load shedding logic (preventing blackouts during peak demand), and power factor correction.
  • Chemical Plants: Regulation of backup generator sets (for emergency power during grid outages) and control of high-voltage motor drives (e.g., compressor motors).
• Marine & Offshore Power Systems: Regulates electrical networks in:
  • Cargo Ships: Shipboard generator load sharing, voltage stabilization for navigation equipment, and integration with propulsion control systems.
  • Offshore Oil Rigs: Control of platform power generators (resistant to saltwater corrosion and vibration) and communication with offshore SCADA systems.
• Critical Infrastructure: Ensures power stability in:
  • Data Centers: Backup generator control (fast switchover from grid to generator during outages) and UPS (Uninterruptible Power Supply) synchronization.
  • Hospitals & Airports: Emergency power system control (maintaining voltage for life support equipment or airport lighting) and load prioritization logic.

4. Precautions

• Platform Exclusivity: Use exclusively with ABB Symphony Plus and AC 800M systems. Installation in non-ABB racks (e.g., Siemens PCS 7, Rockwell PlantPAx) will cause backplane communication failure and permanent damage to the unit.
• I/O Wiring for Power Systems:
  • Use shielded, twisted-pair cables rated for high voltage (≥600V) for analog I/O connected to CTs/VTs. Ground the shield at the sensor end (not the unit end) to avoid ground loops.
  • Never connect CT secondary windings directly to the unit without a current-limiting resistor—open CT circuits generate dangerous high voltages that destroy the unit’s I/O circuitry.
• Redundancy Configuration: When setting up hot-standby redundancy, ensure both primary and backup units have identical firmware versions and configurations (via Control Builder M). Mismatched settings cause failover failures and data desynchronization.
• Firmware Compatibility: Verify that the unit’s firmware is compatible with the Symphony Plus/AC 800M DCS version. Outdated firmware may not support IEC 61850 GOOSE messaging or new protection relay models (e.g., ABB REF620).
• Surge Protection Supplementary Measures: In high-transient environments (e.g., substations), install external surge protectors (SPDs) on Ethernet and serial ports—even with built-in protection, extreme transients (e.g., direct lightning strikes) can damage communication interfaces.
• Calibration: Calibrate analog I/O channels annually using a precision calibrator (e.g., Fluke 725). Drifted calibration leads to inaccurate voltage/current readings, which can cause incorrect generator load sharing or grid instability.
• Maintenance Checks: Inspect quarterly:
  • Verify LED status (no red faults; redundancy indicator shows green/amber for active primary/backup).
  • Test IEC 61850 GOOSE communication with protection relays—ensure event messages (e.g., “breaker tripped”) are received within ≤1ms.
  • Clean the unit’s vents with dry compressed air (avoid moisture) to prevent overheating—blocked vents cause CPU thermal throttling and slower control loop response.
  • Test redundancy failover by disconnecting the primary unit—confirm the backup takes over within ≤5ms (use a oscilloscope to monitor I/O output continuity)
