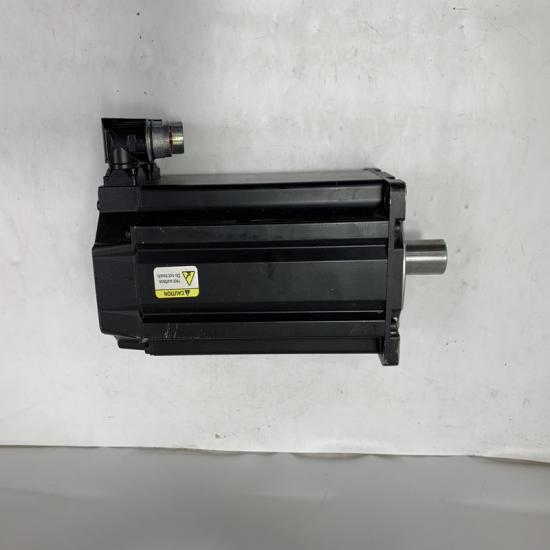

Allen‑Bradley MPL‑B4530F‑SJ72AA | AC Servo Motor

Specifications

• Voltage Class: 460 V AC (400V‑class winding)
• Frame Size: 45 = 130 mm (5.12 in) flange
• Stack Length: 30 = 76.2 mm (3.0 in)Rockwell Automation
• Rated Power: 2.1 kW
• Rated Speed: 3000 rpm
• Continuous Stall Torque: 8.25 Nm (74 lb·in)
• Peak Torque: 20.3 Nm (180 lb·in)
• Feedback: Single‑turn high‑resolution encoder (absolute)
• Shaft: Keyed shaft, no shaft seal
• Brake: No brake
• Connectors: SpeedTEC DIN, right‑angle, 180° rotatable
• Mounting: IEC metric flange, free mounting
• IP Rating: IP50 (standard); IP66 with optional shaft seal & sealed cables
• Weight: ~8.8 kg
• Operating Temp: 0 °C to 40 °C (ambient)
• Certifications: UL, CSA, CE

Key Features

1. Low‑Inertia Design: Fast dynamic response for high‑speed positioning.
2. High Torque Density: Compact frame (130 mm) delivers 8.25 Nm continuous torque.
3. Smart Motor Technology: Onboard memory stores motor ID & parameters for easy commissioning.
4. High‑Res Encoder: Single‑turn absolute encoder for precise positioning & homing.
5. Quick‑Connect DIN Connectors: Right‑angle, 180° rotatable for flexible cabling.

Applications

• High‑speed automation: Packaging, material handling, machine tools
• Robotics & CNC machinery
• Electronic assembly & semiconductor equipment
• Converting & printing machinery
