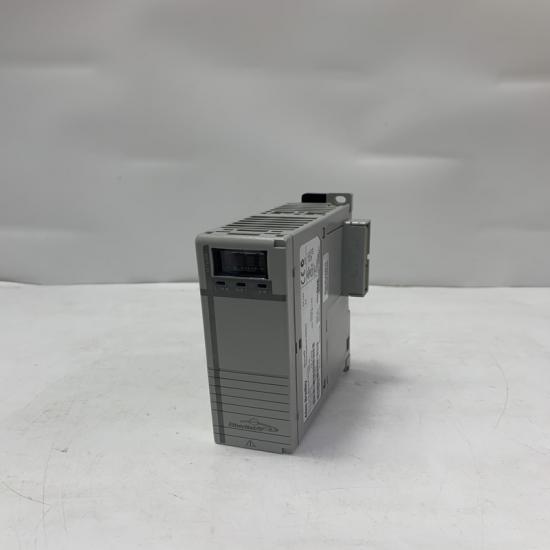

A-B 5069-L310ER CompactLogix 5380 Controller

Product Overview

Core Specifications

Performance & Memory

• User program memory: 1 MB
• Max local Compact 5000 I/O modules: 8 slots
• Max EtherNet/IP connected nodes: 24 devices
• Integrated motion axes: 0 (select 5069-L310ERM for 4 motion axes)
• Processor: Quad-core high-speed architecture, fast backplane I/O refresh
• Non-volatile storage: Supports SD card for program backup, firmware storage

Communication Interfaces

• Dual 1 Gbps EtherNet/IP RJ45 ports
  • Support Dual-IP, Linear, DLR (Device Level Ring) redundant network topology
  • Carry I/O data, HMI connection, remote access, CIP safety signal
• USB 2.0 Type-B port: For temporary programming, firmware download, online debugging
• No isolation between two Ethernet ports; 300V continuous isolation between Ethernet & backplane/power circuits

Power Specifications

• MOD module power: 18–32 VDC, 450mA rated, 850mA inrush (125ms)
• SA auxiliary power: 0–32 VDC / 0–240 VAC 47–63Hz
• Max power dissipation: 8.5 W (29 BTU/hr)
• No supercap backup standard (variant -NSE removes supercap)

Mechanical & Environmental

• Mounting: 35mm standard DIN rail (horizontal installation only)
• Dimension (H×W×D): 123 × 98.1 × 136.81 mm
• Weight: ~0.768 kg
• Operating temperature: 0°C ~ +60°C; storage -40°C ~ +85°C
• Humidity: 5%–95% non-condensing
• Shock & vibration: Compliant with IEC 60068 industrial standards
• Protection: IP20, indoor cabinet use only

Certifications

Main Functions

1. Discrete & Analog Logic Control



   Execute Ladder Diagram, Function Block, Structured Text, Sequential Function Chart programs to control local 5069 digital/analog I/O and remote field devices.
2. Dual Gigabit EtherNet/IP Network Gateway

• Dual-IP mode separates OT control network and IT enterprise network without extra switches
• DLR ring topology provides single cable break redundancy to avoid production halt
• Real-time exchange I/O data, HMI screen data, fault alarms with field sensors, drives, HMIs

3. Full System Fault Diagnosis & Status Monitoring



   Built-in multi-color LED indicators for controller run/fault, Ethernet link/activity, backplane module errors; upload detailed fault codes to HMI for remote troubleshooting.
4. Industrial Cybersecurity Protection

• Encrypted, signed firmware to prevent tampering
• Role-based access control for program editing
• Operation change logging & unauthorized access detection
• Support network security policies for factory network isolation

5. Offline Program Backup & Recovery



   SD card slot stores complete controller program, tag database, firmware; fast program restoration after controller replacement without re-download from PC.
6. Distributed Remote I/O Management



   Drive remote Compact 5000 I/O racks over EtherNet/IP, reducing long-distance field wiring cost for scattered production stations.

Key Advantages

• Quad-core high-speed processor delivers faster scan cycle than legacy 1769 CompactLogix series
• Dual 1Gbps Ethernet eliminates external switch for network isolation/ring redundancy
• Compact slim body saves cabinet space for small machine control panels
• Unified Logix 5000 programming environment (Studio 5000), consistent with ControlLogix large PLCs
• Rich hazardous location certification fits chemical, water treatment, mining industry cabinets
• Modular expandable local I/O rack, flexible to add analog/temperature/relay modules on site
• Built-in complete security suite meets modern factory IT/OT safety compliance requirements
