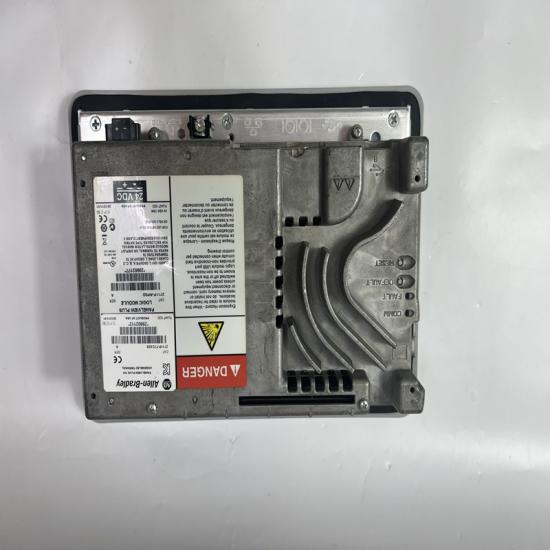

A-B 2713P-T10CD1 PanelView HMI

Allen‑Bradley 2713P‑T10CD1

PanelView 5310 HMI (10.4" Touch, Ethernet/IP)

Specifications

• Display: 10.4" TFT color LCD, 800×600 SVGA, 4:3 ratio
• Touchscreen: Analog resistive, ≤100g actuation force, 10⁶ presses ratingRockwell Automation
• Backlight: LED (non‑replaceable), 50,000 hr @ 40°C to half‑brightnessRockwell Automation
• Power: 24 V DC (18–30 V DC), ~12 W consumption
• Memory: 1 GB RAM, 1 GB non‑volatile storage; SD card slot for expansionRockwell Automation
• Communication: 1× 10/100Base‑T Ethernet (EtherNet/IP), Auto MDI/MDI‑X; 1× USB 2.0 hostRockwell Automation
• Environmental:
  • Operating: 0 °C to +50 °C
  • Front panel: IP66, NEMA 4/4X/13
• Mounting: Panel mount (cutout: 252 × 297 mm)
• Software: Studio 5000 View Designer (v27+), integrates with Logix controllersRockwell Automation
• Approvals: UL/cUL, CE, CCC, RoHS
• Status: Active

Key Features

• High‑performance 10.4" HMI: Sharp SVGA display for clear process visualization
• Logix‑optimized: Native EtherNet/IP for ControlLogix/CompactLogix, single software environmentRockwell Automation
• Industrial durability: IP66 front, wide temp range, conformal coating optionRockwell Automation
• Flexible I/O: Ethernet for control, USB for data transfer, SD for backup/restoreRockwell Automation
• Rich functionality: 100 user screens, 4,000 Logix alarms, real‑time diagnosticsRockwell Automation
