A-B 2711R-T10T HMI Touch Panel

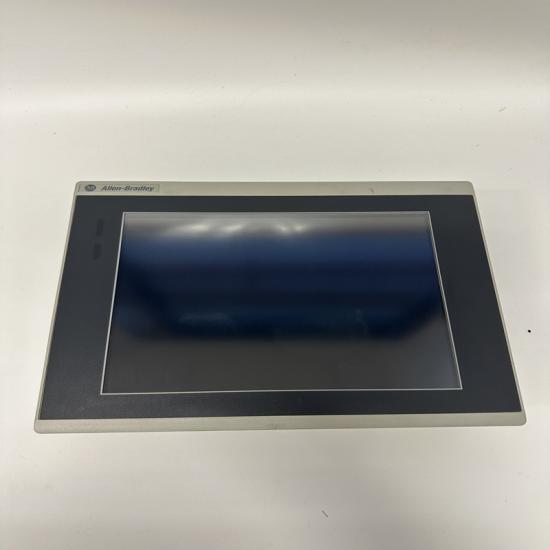

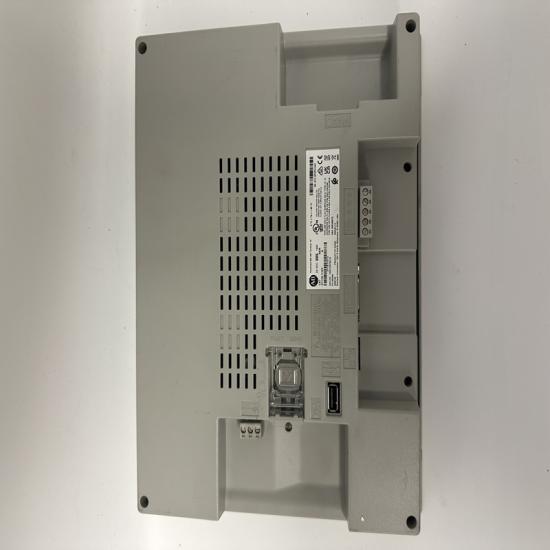

Allen‑Bradley 2711R‑T10T | PanelView 800 10.4" Color Touch HMI

Specifications

• Display: 10.4" TFT color LCD, 800×600 pixels, 65K colors
• Touch: Analog resistive touchscreen
• Processor: 800 MHz CPURockwell Automation
• Memory: 256 MB DDR SDRAM / 256 MB Flash (min.)Rockwell Automation
• OS: Windows CE 6.0Rockwell Automation
• Power: 24 V DC (18–32 V DC range), max 11 WRockwell Automation
• Communications:
  • 1× Ethernet 10/100 Mbps (EtherNet/IP, Modbus TCP)Rockwell Automation
  • 1× RS‑232 (isolated)Rockwell Automation
  • 1× RS‑422/485 (isolated, Modbus RTU)Rockwell Automation
  • 1× USB 2.0 HostRockwell Automation
  • 1× microSD card slotRockwell Automation
• Enclosure: IP65 front, NEMA 4X/12/13; indoor use
• Operating Temp: 0 °C to +50 °C
• Dimensions (H×W×D): 225 × 287 × 55 mm
• Weight: ~1.64 kgRockwell Automation
• Certifications: CE, UL, CSA, cULus, KC

Key Features

1. Compact & Rugged: 10.4” screen in slim depth; sealed front for dust/water resistance。
2. Rich Connectivity: Ethernet + serial ports for easy integration with Micro800/MicroLogix/CompactLogix。
3. Industrial Performance: 800 MHz CPU + ample memory for complex graphics and recipesRockwell Automation。
4. Easy Programming: Use Connected Components Workbench (v8.0+) softwareRockwell Automation。
5. Replaceable RTC Battery: 5‑year life @25 °C, maintains time/recipes when powered offRockwell Automation。

Applications

• Machine‑level HMI for small–mid automation projects
• Food & beverage, packaging, material handling
• Automotive assembly, plastics, textile machinery
• Building automation, HVAC, water/wastewater
• Micro800/MicroLogix/CompactLogix control systems
