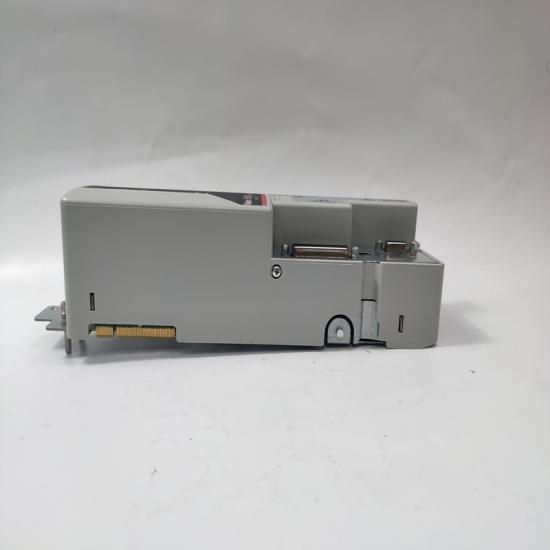

A-B 2711P-T6C20A8 PanelView Plus 6 Operator Terminal

Product Description

Allen-Bradley 2711P-T6C20A8 is a PanelView Plus 6 600 Operator Terminal manufactured by Rockwell Automation. It is a compact industrial HMI (Human Machine Interface) designed for machine operation, process visualization, alarm monitoring, and data interaction in industrial automation systems.

The terminal features a 5.7-inch color TFT touchscreen, Ethernet communication, RS-232 communication, USB ports, and runs Windows CE 6.0 operating system with FactoryTalk View Machine Edition Runtime.

Specifications

• Brand: Allen-Bradley (Rockwell Automation)
• Model: 2711P-T6C20A8
• Product Type: Operator Terminal / Industrial HMI
• Series: PanelView Plus 6
• Display Size: 5.7 inch
• Display Type: Color TFT LCD
• Touch Type: Analog Resistive Touchscreen
• Resolution: 320 × 240 pixels
• Display Color: 18-bit Color Graphics
• Input Voltage: 100…240 VAC, 50/60 Hz
• Power Consumption: Approx. 20 VA typical / 35 VA maximum
• Memory:
  • RAM: 256 MB
  • Nonvolatile Memory: 512 MB
• Operating System: Windows CE 6.0
• Software: FactoryTalk View Machine Edition Runtime
• Communication Interfaces:
  • Ethernet (10/100 Mbps, EtherNet/IP)
  • RS-232
  • USB Host
  • USB Device
• External Storage: SD card slot
• Protection Rating: Front panel industrial enclosure design
• Mounting: Panel Mount
• Approx. Dimensions: 152 × 185 × 68 mm
• Weight: Approx. 0.6 kg

Functions

• Provides operator-machine interface control
• Displays machine status and production information
• Shows alarms, messages, and diagnostic data
• Enables operator input through touchscreen
• Runs FactoryTalk View ME HMI applications
• Communicates with PLC systems through EtherNet/IP or serial networks
• Supports recipe management and data logging functions

Advantages & Features

• Compact 600 series HMI design
• Color touchscreen operation
• Built-in Ethernet communication
• Supports Rockwell Automation Logix controllers
• Integrated FactoryTalk View runtime software
• Supports SD card data transfer and firmware updates
• Industrial-grade design for continuous operation
• Easy replacement within PanelView Plus systems

Applications

• Industrial automation equipment
• Machine control systems
• Packaging machinery
• Production lines
• Process monitoring systems
• Material handling equipment
• Factory automation applications

Notes

• 2711P-T6C20A8 is an HMI operator terminal, not a PLC controller
• This model has been discontinued by Rockwell Automation.
• Requires compatible FactoryTalk View Studio / Machine Edition project files for programming
• Confirm communication settings before replacement
• Check AC power supply requirements before installation
• Contains a CR2032 lithium coin-cell battery for real-time clock backup (replace according to maintenance requirements)
