A-B 25C-D2P3N114 AC drive

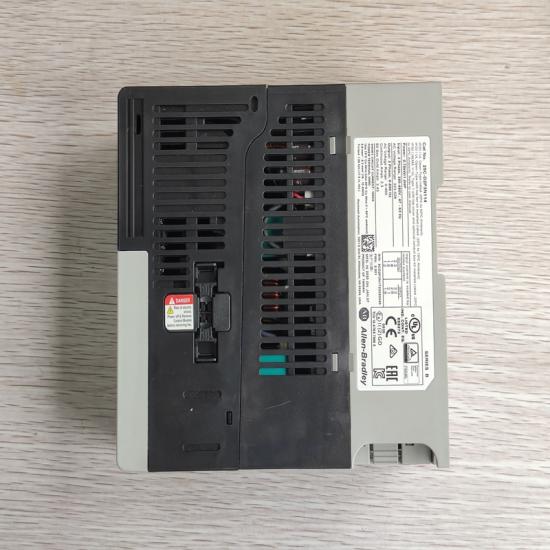

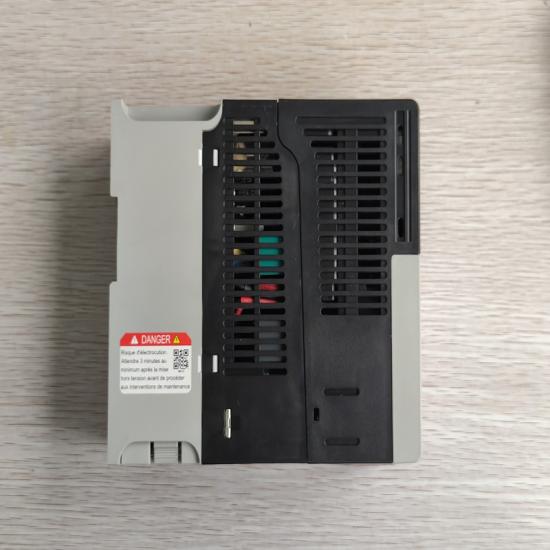

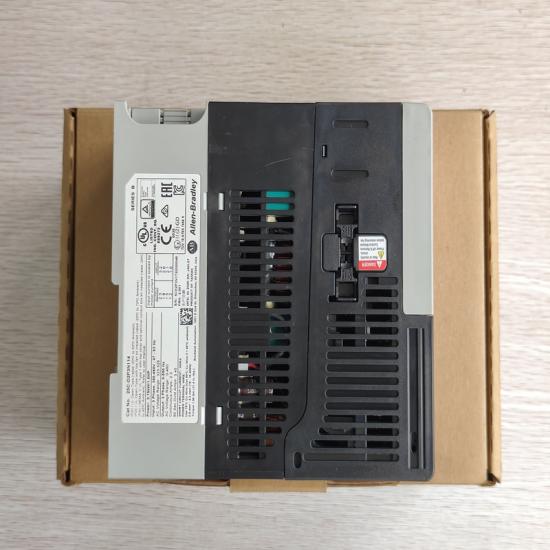

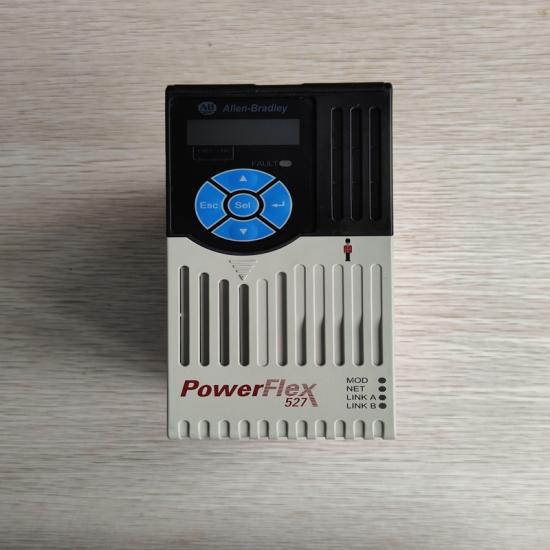

A-B 25C-D2P3N114 PowerFlex 527 AC Drive

Specifications

• Model: 25C-D2P3N114 (PowerFlex 527)
• Power: 0.75 kW / 1 HP
• Input: 380–480V AC, 3-phase, 50/60 Hz
• Output: 0–460V AC, 3-phase, 2.3A rated
• Control: V/F, Sensorless Vector Control (SVC)
• Communication: Dual-port EtherNet/IP
• I/O: 4DI, 2DO (opto), 2AI, 1AO
• Safety: Safe Torque Off (STO, SIL 3/PLe)
• Protection: Overload, overvoltage, undervoltage, overcurrent, overtemperature
• Enclosure: IP20 / NEMA Open, Frame A
• Temp: -20°C to +50°C
• Features: Integrated EMC filter, brake IGBT

Advantages & Features

• Compact & integrated: All-in-one design with EMC filter and brake transistor
• High performance: SVC for smooth, precise motor control
• Dual Ethernet: Supports linear/star/ring topologies, easy networking
• Safe & reliable: STO certified SIL 3/PLe; robust industrial design
• Easy setup: Quick commissioning, LED status, simple programming
• Energy efficient: Optimized for fan/pump and general motion applications

Applications

• Industrial automation, conveyors, fans, pumps, compressors
• Packaging, material handling, machine tools
• HVAC, water treatment, general-purpose motor control

Precautions

• Operate only within 380–480V AC input range
• Install in clean, dry, well-ventilated enclosure; avoid dust/moisture
• Ensure proper grounding and EMC compliance
• Do not open cover while powered; wait 5 minutes after shutdown for discharge
• Use compatible motor size; avoid continuous overload
