• • • • • • • • • • • • • • • • • • • • A-B 20AD011A0AYNANC0 PowerFlex 70 AC Drive

                                        Product Overview

                                        The Allen-Bradley 20AD011A0AYNANC0 PowerFlex 70 is an adjustable-frequency AC drive designed to control the speed and torque of three-phase AC motors in industrial automation systems. This configuration supports 480V AC input, provides 11 A continuous output current, and includes enhanced control, an integrated braking IGBT, and an EMC filter. It has no built-in human interface module, no internal braking resistor, and no feedback option.



                                        US

                                        +1



                                        Key Technical Specifications

                                        Parameter	Specification
                                        Brand	Allen-Bradley (A-B)
                                        Model	20AD011A0AYNANC0
                                        Product Series	PowerFlex 70
                                        Product Type	AC Variable Frequency Drive (VFD)
                                        Input Voltage	480V AC
                                        Input Phase	3-phase
                                        Output Current	11 A continuous
                                        Motor Power	7.5 HP (normal duty) / 5 HP (heavy duty)
                                        Output Frequency	0–400 Hz (standard control); up to 500 Hz with enhanced control
                                        Control Method	Volts/Hertz and sensorless vector control
                                        Control Type	Enhanced control with 24V I/O
                                        Braking	Brake IGBT installed
                                        Braking Resistor	Not included
                                        EMC Filter	Second-environment filter
                                        Communication Module	None installed
                                        Feedback	No feedback option
                                        Human Interface Module	Blank plate; HIM not included
                                        Enclosure Rating	IP20 / NEMA Type 1
                                        Frame Size	C
                                        Dimensions (H × W × D)	Approx. 300 × 185 × 180 mm
                                        Weight	Approx. 6.89 kg
                                        Country of Origin	Mexico (manufacturer-listed; verify unit label)

                                        Specifications are based on the official Rockwell Automation product page and configuration datasheet.



                                        US

                                        +1



                                        Features and Advantages

                                        • Precise motor control: Supports adjustable speed and sensorless vector operation.

                                        • Enhanced control: Includes 24V I/O for industrial control integration.

                                        • Integrated braking IGBT: Supports dynamic braking when used with a compatible external braking resistor.

                                        • EMC filtering: Helps reduce conducted electromagnetic interference.

                                        • Flexible stopping functions: Supports coast, DC braking, and programmable stop modes.

                                        • Industrial construction: Designed for panel-mounted automation applications.

                                        Typical Applications

                                        • Conveyor and material handling systems

                                        • Pumps and fans

                                        • Industrial machinery

                                        • Packaging equipment

                                        • General-purpose motor speed control

                                        Important Notes

                                        • This configuration does not include a braking resistor, communication module, feedback option, or HIM.

                                        • Confirm the motor's rated voltage, current, and power before installation.

                                        • The drive is panel-mounted and rated IP20/NEMA Type 1; additional enclosure protection may be needed depending on the installation environment.

                                        • Verify the complete catalog number and nameplate before ordering.

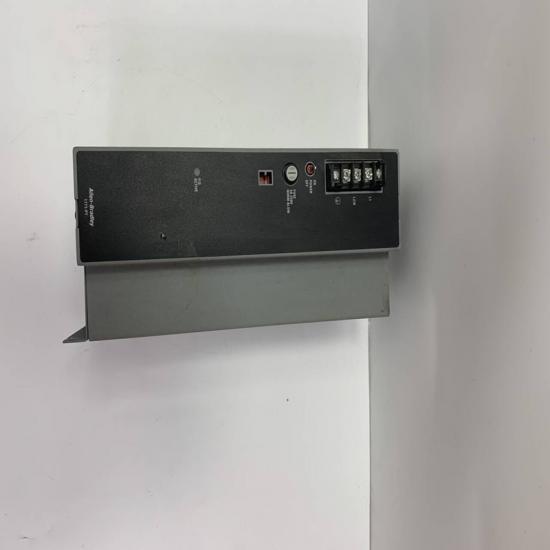

• • • • • • • .The structure and details of the product：
