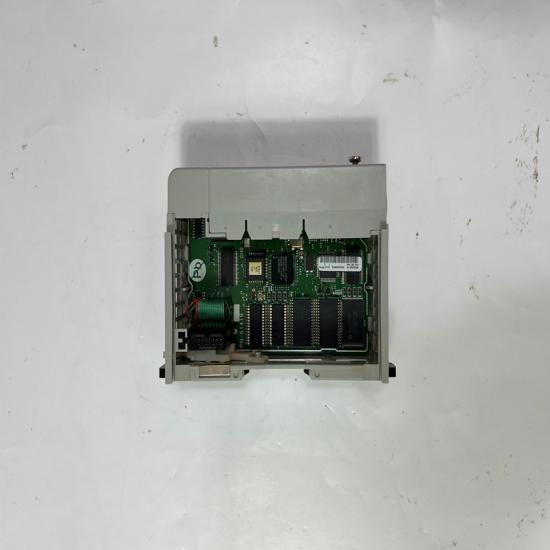

Allen-Bradley 2093-AMP1 Kinetix 2000 Servo Amplifier

Product Description

Allen-Bradley 2093-AMP1 is a Kinetix 2000 Single-axis Servo Amplifier (Axis Module) designed for multi-axis motion control systems. It receives DC bus power from the Kinetix 2000 power rail and provides precise control of servo motor speed, torque, and position for high-performance automation applications.

Specifications

• Brand: Allen-Bradley (Rockwell Automation)
• Model: 2093-AMP1
• Series: Kinetix 2000
• Product Type: Single-axis Servo Amplifier / Axis Module
• Input Voltage: 325 VDC
• Continuous Output Current: 1.0 A RMS
• Continuous Peak Current: 1.41 A
• Peak Output Current: 3.0 A RMS
• Peak Current (0-pk): 4.20 A
• Rated Output Power: 0.3 kW
• PWM Frequency: 8 kHz
• Velocity Loop Bandwidth: 500 Hz
• Current Loop Bandwidth: 860 Hz
• DC Bus Capacitance: 200 μF
• Energy Absorption: 7.5 J
• Efficiency: Approx. 98%
• Mounting: Kinetix 2000 Power Rail
• Communication: SERCOS interface via Kinetix 2000 system
• Weight: Approx. 0.91 kg

Advantages & Features

• High-precision servo motor control
• Supports accurate position, speed, and torque regulation
• Compact modular design saves cabinet space
• Integrated into Kinetix 2000 multi-axis servo architecture
• Fast response with high-bandwidth control loops
• Reliable performance for demanding motion applications
• Easy replacement and maintenance in existing systems

Applications

• CNC machining equipment
• Packaging machinery
• Robotic systems
• Semiconductor manufacturing equipment
• Automated assembly machines
• Precision positioning systems
• Factory automation production lines

Notes

• Confirm compatibility with Kinetix 2000 power rail and controller before installation
• Verify servo motor model and feedback type
• Ensure correct DC bus voltage before operation
• Disconnect power and wait for DC bus discharge before maintenance
• Check firmware and configuration parameters when replacing existing modules
•
