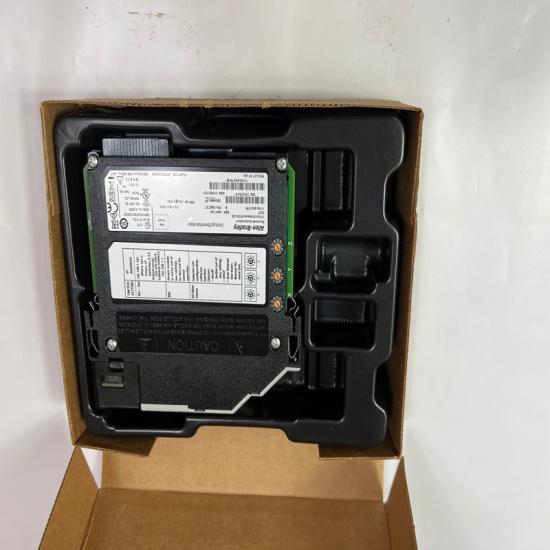

Allen-Bradley 1797-BIC FLEX Ex Bus Isolator Module

Product Overview

The Allen-Bradley 1797-BIC FLEX Ex Bus Isolator Module is an intrinsically safe isolation module designed for the FLEX Ex I/O system. It provides galvanic isolation between standard FLEX I/O bus sections and intrinsically safe FLEX Ex modules, allowing safe connection of field devices in hazardous environments. The module supports up to 8 FLEX Ex I/O modules on the isolated side and is widely used in hazardous area automation systems.

Specifications

Advantages & Features

• Provides reliable intrinsic safety isolation for hazardous areas
• Enables connection between standard FLEX I/O and FLEX Ex modules
• Supports up to 8 FLEX Ex I/O modules
• Galvanic isolation improves system safety and signal reliability
• Suitable for explosive and hazardous environments
• Compact DIN rail mounting design
• Reduces wiring complexity in safety automation systems
• Improves protection of control systems from field-side hazards

Applications

• Oil & Gas Automation Systems
• Chemical Processing Plants
• Petrochemical Facilities
• Hazardous Area Control Systems
• Mining Automation
• Process Control Systems
• Industrial Safety Instrumentation
• Explosion-Proof I/O Applications

Precautions

• Verify hazardous area certification requirements before installation.
• Do not connect non-intrinsically safe signals to FLEX Ex connections.
• Confirm power supply voltage is within 18–32VDC range.
• Install inside a suitable enclosure.
• Check the maximum number of connected FLEX Ex modules.
• Disconnect power before maintenance.
