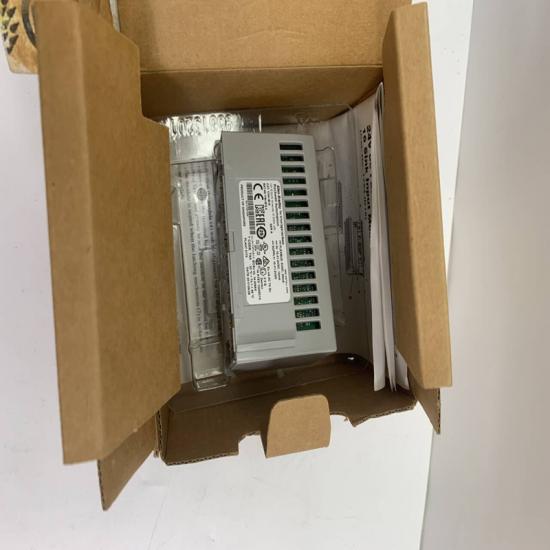

A-B 1794-AENTRXT FLEX I/O Ethernet Adapter

Product Overview
The Allen-Bradley 1794-AENTRXT is a FLEX I/O XT Dual-Port EtherNet/IP Adapter designed to connect FLEX I/O modules to an EtherNet/IP network. The XT version is intended for extended-temperature environments and supports up to 8 FLEX I/O modules.

Technical Specifications

• Model: 1794-AENTRXT
• Series: FLEX I/O XT
• Type: Dual-Port EtherNet/IP Adapter
• I/O Capacity: Up to 8 FLEX I/O modules
• Communication: EtherNet/IP
• Ethernet Ports: 2 × RJ-45
• Communication Speed: 10/100 Mbps
• Power Supply: 24 VDC nominal
• Operating Voltage: 19.2–31.2 VDC
• Power Supply Current: Approx. 500 mA max.
• FlexBus Output: 640 mA @ 5 VDC max.
• Mounting: DIN rail
• Operating Temperature: -25 to +70°C
• Enclosure: Open-style
• Dimensions: Approx. 87 × 94 × 92 mm
• Temperature Code: T4A / T4

Advantages & Features

• Dual Ethernet ports for flexible network architecture
• Supports EtherNet/IP communication with FLEX I/O
• Extended-temperature design for harsh industrial environments
• Supports up to 8 I/O modules per adapter
• DIN-rail mounting for compact installation
• Compatible with distributed I/O architectures
• Supports configuration through Studio 5000 Logix Designer

Applications

• Factory automation
• Distributed I/O systems
• Packaging machinery
• Material handling
• Process automation
• Remote machine I/O
• Industrial control systems
