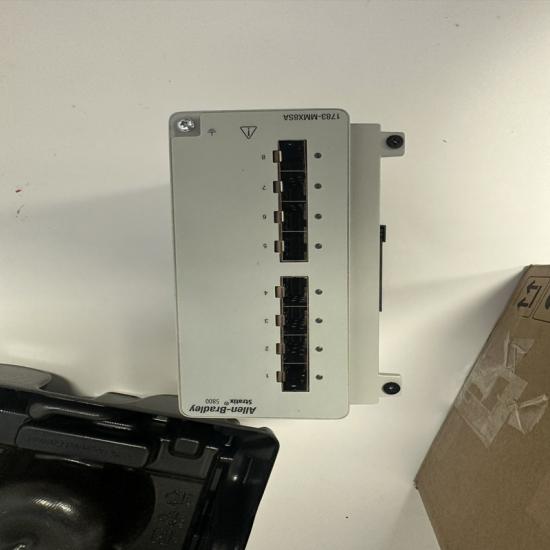

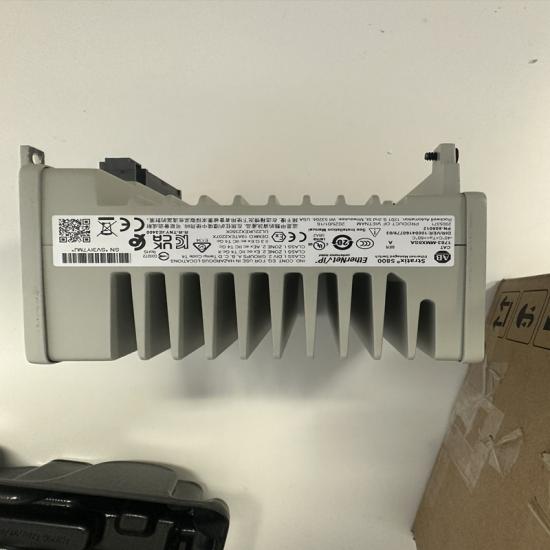

A-B 1783-MMX8SA Managed Ethernet Switch

A-B 1783-MMX8SA | Stratix 5800 Managed Ethernet Switch (Expansion Module)

Specifications

• Ports: 8 × SFP slots (100/1000 Mbps, Gigabit Ethernet)
• Switch Fabric: Layer 2 managed; EtherNet/IP with CIP
• FPGA: Integrated for TSN (Time-Sensitive Networking), HSR/PRP redundancy
• Power: 24–48 VDC (from backplane)
• Mounting: DIN rail (compatible with Stratix 5800 base switch 1783-MMS)
• Enclosure: IP20 (industrial cabinet)
• Operating Temp: 0 °C to +60 °C
• Dimensions: 64 × 152 × 122 mm (2.5 × 6.0 × 4.8 in)
• Weight: ~0.9 kg

Key Features

1. High-Speed Expansion: Adds 8 GbE SFP ports to Stratix 5800 for fiber/copper flexibility。
2. Industrial Redundancy: FPGA enables TSN, HSR, PRP for ultra-high availability networks。
3. CIP Integration: Native EtherNet/IP with CIP, seamless integration with Rockwell PLCs。
4. DIN Rail & IP20: Compact, rugged design for industrial control cabinets。
5. Advanced Management: Web UI, QoS, VLAN, IGMP snooping, port mirroring。

Applications

• Stratix 5800 managed switch port expansion
• Industrial EtherNet/IP networks (factory automation, process control)
• High-availability systems (redundancy, TSN for motion/real-time)
• Fiber-based Ethernet backbones in harsh environments
