A-B 1771-IXE Analog Input Module

Allen-Bradley 1771-IXE Analog Input Module (PLC-5 Series)

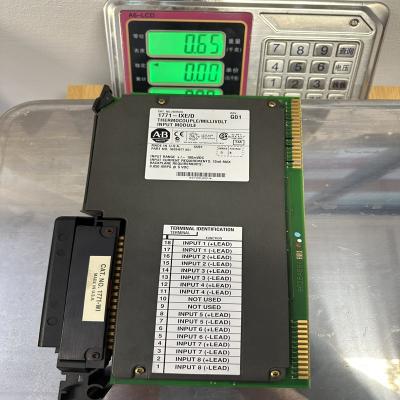

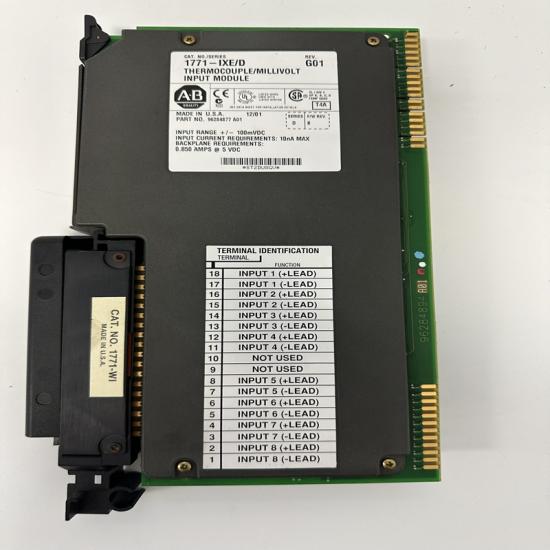

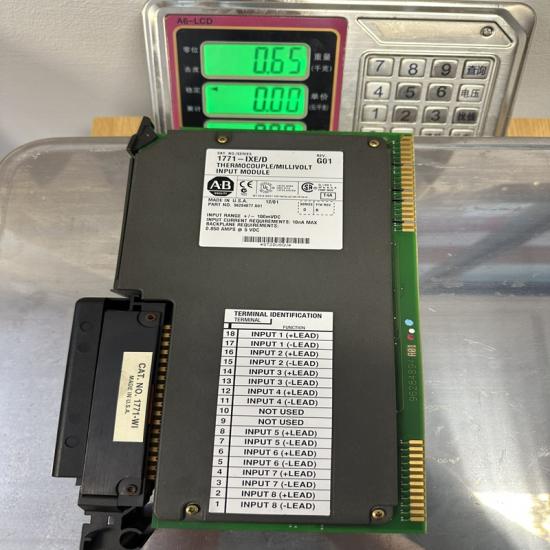

The Allen-Bradley 1771-IXE is an analog input module used in the PLC-5 1771 I/O system. It is designed for thermocouple and millivolt signal acquisition, mainly for temperature measurement in industrial control systems.

It is a specialized high-resolution input module, not a PLC CPU.

Key Specifications

• Model: 1771-IXE
• Brand: Allen-Bradley (Rockwell Automation)
• Series: PLC-5 / 1771 I/O System
• Product Type: Analog Input Module
• Input Type:
  • Thermocouple (multiple types)
  • Millivolt signals (mV range)
• Channels:
  • Typically 8 input channels
• Function:
  • Temperature signal conversion to PLC data
• Installation:
  • Requires 1771 I/O chassis backplane
• Signal Processing:
  • High-resolution A/D conversion for process control

What it does (simple explanation)

This module is used to:

• Read temperature sensors (thermocouples)
• Convert weak analog signals (mV) into digital PLC values
• Send data to PLC-5 processor for control logic

Example system:

Thermocouple (K, J, T, etc.)
↓
1771-IXE Module
↓
PLC-5 CPU
↓
Control actions (alarm, shutdown, process control)

Features & Advantages

• High accuracy temperature measurement
• Supports multiple thermocouple types
• Electrical isolation for industrial environments
• Stable signal processing for process control
• Compatible with legacy PLC-5 systems
• Reliable for continuous industrial operation

Applications

• Furnace temperature monitoring
• Chemical process control
• Oil & gas plants
• Power generation systems
• Steel / metallurgy industries
• Industrial heating systems
• Legacy automation retrofit systems
