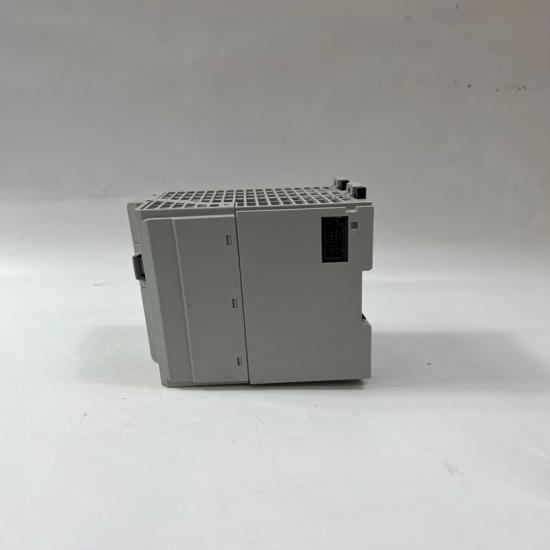

A-B 1769-L33ER CompactLogix PLC Controller

Allen-Bradley 1769-L33ER CompactLogix PLC Controller





The Allen-Bradley 1769-L33ER is a CompactLogix 5370 L3 series programmable logic controller (PLC) used for mid-range industrial automation control. It combines a built-in CPU, dual Ethernet communication, and support for local and distributed I/O modules.

It is one of the most commonly used CompactLogix controllers in factory automation systems.

Key Specifications

• Model: 1769-L33ER
• Brand: Allen-Bradley (Rockwell Automation)
• Series: CompactLogix 5370 L3
• Product Type: PLC / PAC Controller
• Processor Memory: 2 MB user memory
• Communication:
  • 2 × Ethernet/IP ports
  • DLR (Device Level Ring) support
• I/O Capacity:
  • Up to 16 local 1769 I/O modules
  • Supports distributed I/O via Ethernet/IP
• Network Nodes:
  • Up to 32 Ethernet/IP devices
• Programming Software:
  • Studio 5000 Logix Designer
• Power:
  • 24V DC system power (via 1769 power supply)

(verified from Rockwell Automation product documentation)

What it does (simple explanation)

Sensors / Field Devices
↓
1769 I/O Modules (Input / Output)
↓
1769-L33ER PLC Controller (brain)
↓
Ethernet/IP network
↓
HMI / SCADA / Drives / Other PLCs

It is the central brain of the automation system, responsible for:

• Reading inputs
• Running control logic
• Controlling outputs
• Communicating with other devices

Key Features

• Dual Ethernet ports for fast industrial communication
• Supports ring network (DLR) for redundancy
• Compact design (all-in-one CPU module)
• High-speed processing for machine control
• Supports distributed control systems
• Integrates with Studio 5000 programming environment

Main Functions

• Executes PLC logic programs (ladder logic / structured text)
• Controls machines and production lines
• Collects data from sensors and I/O modules
• Communicates with HMI / SCADA systems
• Coordinates drives, motion, and remote I/O systems

Applications

• Packaging machines
• Conveyor systems
• Assembly lines
• Industrial robots (basic coordination)
• Process control systems
• Material handling systems
• Factory automation networks
