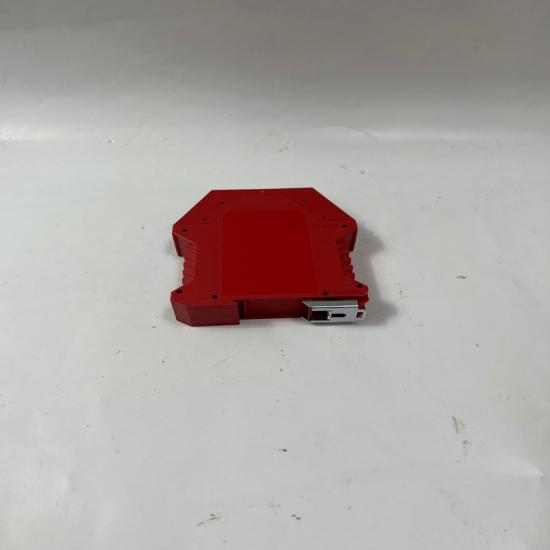

A-B 1753-L32BBBM-8A GuardPLC Safety Controller

Product Description

The Allen-Bradley 1753-L32BBBM-8A is a GuardPLC 1800 series safety controller, designed for functional safety applications (SIL-rated systems) in industrial automation.

It is used to implement machine safety logic, such as emergency stop systems, safety interlocks, light curtain monitoring, and other safety-related control functions.

This controller is part of Rockwell’s standalone safety PLC platform (GuardPLC), separate from standard ControlLogix or CompactLogix systems.

Key Specifications

• Brand: Allen-Bradley (Rockwell Automation)
• Series: GuardPLC 1800
• Model: 1753-L32BBBM-8A
• Type: Safety PLC / Safety Controller
• Supply Voltage: 24 VDC
• I/O Capacity: 32 total I/O points
  • 24 digital inputs
  • 8 digital outputs
• Analog Inputs: 8 (depending configuration)
• High-Speed Counters: 2 channels (24-bit resolution)
• Memory: ~250 KB program + 250 KB data memory
• Protection: IP20 industrial enclosure
• Function: Safety-rated control (SIL applications)

What it actually does

This device is not a normal PLC—it is a safety-certified controller used to:

• Monitor safety devices (E-stops, safety gates, light curtains)
• Execute safety logic independently of standard PLC
• Force system into safe state during faults
• Provide diagnostics for safety circuits
• Support SIL-level safety architecture (commonly SIL2 / SIL3 system design dependent)

System Role (Simple)

Safety inputs (E-stop, sensors, interlocks)
→ 1753-L32BBBM-8A Safety Controller
→ evaluates safety logic
→ safety outputs (contactors / STO / shutdown signals)
→ machine enters safe state if fault occurs

Key Features

• Dedicated industrial safety PLC platform
• Supports complex safety logic programming
• Built-in fault detection and safe-state behavior
• High I/O density (32 points)
• High-speed counting capability
• Designed for SIL-rated safety systems
• Modular industrial architecture

Typical Applications

• Emergency stop systems (E-stop circuits)
• Machine guarding systems
• Safety interlock systems
• Press machines and automation cells
• Conveyor safety systems
• Robotic safety zones
• Process industry safety shutdown systems

Advantages

• Purpose-built for functional safety applications
• Faster and more reliable than relay-based safety circuits
• Centralized safety logic control
• Built-in diagnostics and fault handling
• Supports complex safety architectures (not just simple relay logic)
• Industrial-grade reliability

Important Notes

• Not a standard PLC CPU ❌
• Not an I/O expansion module ❌
• Not a power supply ❌
• It is a safety-rated PLC controller (GuardPLC system) ✔

Precautions

• Requires proper safety system design (SIL / PL calculations)
• Programming requires specialized software (GuardPLC engineering tools)
• Must follow certified safety architecture rules
• Not interchangeable with ControlLogix / CompactLogix
• System changes require safety re-validation
