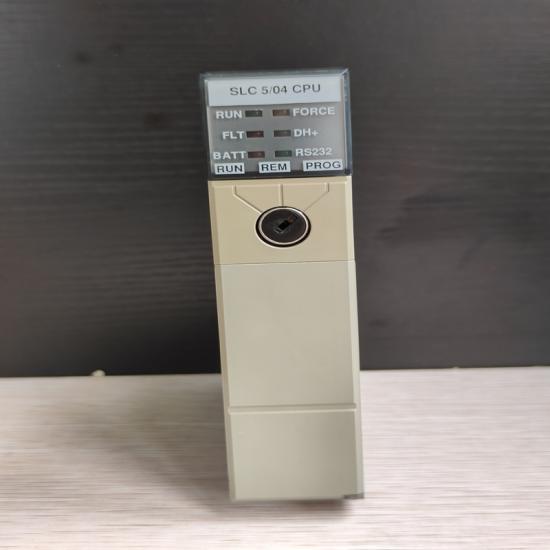

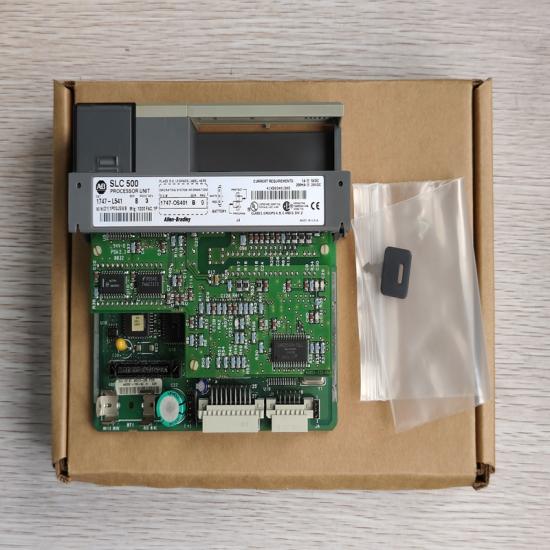

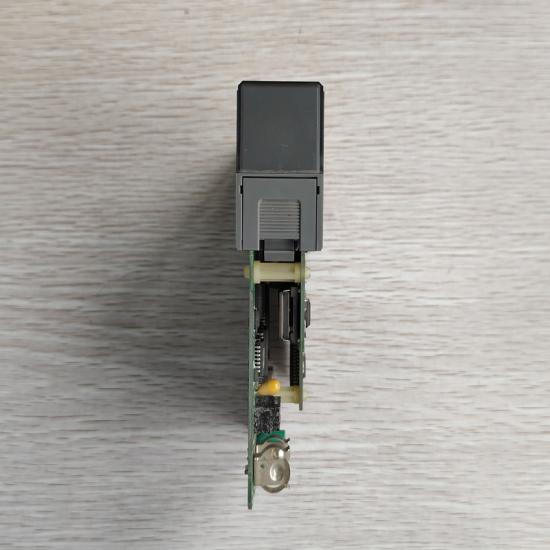

A-B 1747-L541 PLC Processor Module

1747-L541 PLC Processor Module（A-B）

Specifications

• Model: 1747-L541 (SLC 5/04)
• User Memory: 16K words (program/data)
• Max I/O: 4096 in / 4096 out
• Communication: DH+, RS-232 ports
• Execution Speed: 0.37μs/bit instruction
• Operating Temp: 0°C ~ 60°C
• Power: 24V DC
• Dimensions: 145×35×142mm
• Weight: 0.45kg
• Software: RSLogix 500




Features & Advantages

1. High-speed processing for real-time control
2. Dual communication ports (DH+/RS-232) for flexible networking
3. Large I/O capacity (up to 8192 points) for medium systems
4. Battery-backed RAM ensures data retention
5. Status LEDs for easy diagnostics
6. Industrial-grade design for harsh environments

Applications

• Industrial automation & manufacturing
• Power & energy systems
• Building automation (HVAC)
• Material handling & assembly lines
• Small process control & SCADA

Notes

1. Use 24V DC power supply only
2. Avoid extreme temperatures and humidity
3. Do not expose to strong electromagnetic interference
4. Keep connectors clean and dry
5. Use RSLogix 500 for programming
