A-B 1503VC-BMC5 Medium Voltage Drive Control Module

A-B 1503VC-BMC5 Medium Voltage Drive Control Module

A-B 1503VC-BMC5 Medium Voltage Drive Control Module

  • Item NO.:

    1503VC-BMC5
  • Payment:

    T/T
  • Price:

    $2465
  • Product Origin:

    USA
  • Color:

    NEW
  • Product weight:

    0.01KG
  • Lead Time:

    In stock

We will arrange delivery within 3-5 days after receiving the payment.

Our express delivery: DHL and FedEx.Quality packing for each product

                                                                                                                                                                                                        •
                                                                                                                                                                                                            •

                                                                                                                                                                                                              Allen‑Bradley 1503VC-BMC5 IntelliVAC Medium Voltage Vacuum Contactor Control Module

                                                                                                                                                                                                              image
                                                                                                                                                                                                              1503VC-BMC5 Module Front
                                                                                                                                                                                                              image


                                                                                                                                                                                                              Product Overview

                                                                                                                                                                                                              The 1503VC-BMC5 is an IntelliVAC intelligent control module for Rockwell Bulletin 1502 medium-voltage vacuum contactors, integrated into CENTERLINE 1500/1900 medium voltage motor control assemblies (MVCs) up to 7.2kVRockwell Automation. It delivers regulated coil drive logic to control electrically held or mechanically latched 400A / 800A vacuum contactors, replacing traditional discrete relay control panels for reliable medium-voltage motor switching.

                                                                                                                                                                                                              Core Specifications

                                                                                                                                                                                                              • Compatible Contactor: Bulletin 1502 vacuum contactors (400A / 800A, electrically held / mechanical latch)
                                                                                                                                                                                                              • Universal Control Input Power: 110–240 VAC (47–63 Hz) / 110–250 VDC
                                                                                                                                                                                                              • Current Ratings
                                                                                                                                                                                                                • AC Mode: Max 25A inrush; 11.3A close current; 300mA holding current
                                                                                                                                                                                                                • DC Mode: Max 25A inrush; 4.8A close current; 100mA holding current
                                                                                                                                                                                                              • Command Inputs: 110–240VAC / 110–250VDC, 9mA max per input
                                                                                                                                                                                                              • Status Relay Outputs: 250VAC / 30VDC, 5A resistive load; 2A inductive load (PF=0.4)
                                                                                                                                                                                                              • Configurable Drop-out Delay: 50 / 75 / 100 / 130 / 160 / 200ms adjustable
                                                                                                                                                                                                              • Operating Environment
                                                                                                                                                                                                                • Ambient Temp: 0°C ~ 60°C
                                                                                                                                                                                                                • Humidity: 5–95% non-condensing
                                                                                                                                                                                                                • Shock resistance: 15g peak, 11ms pulse
                                                                                                                                                                                                                • Altitude: -1000 ~ 5000 meters
                                                                                                                                                                                                              • Mounting: Surface panel mounting via mounting holes
                                                                                                                                                                                                              • Certifications: UL, CE industrial safety certified
                                                                                                                                                                                                              • Weight: ~0.46kg

                                                                                                                                                                                                              Main Functions

                                                                                                                                                                                                              1. Intelligent Vacuum Contactor Coil Drive

                                                                                                                                                                                                                Output precision regulated close & hold voltage to vacuum contactor coils, stabilizing pull-in action and eliminating coil burnout risks caused by unstable control supply voltage.
                                                                                                                                                                                                              2. Contactor Open/Close Logic Control

                                                                                                                                                                                                                Process START / STOP permissive signals from PLC or local pushbuttons to execute contactor closing and tripping; supports both 2-wire and 3-wire control wiring schemes.
                                                                                                                                                                                                              3. Adjustable Anti-bounce Drop-out Timing

                                                                                                                                                                                                                Customizable contactor release delay to suppress arc reignition during medium-voltage motor shutdown, extending vacuum interrupter service life.
                                                                                                                                                                                                              4. Full Fault Monitoring & Status Feedback

                                                                                                                                                                                                                Detect coil open-circuit, loss of control power, contactor failure; output dry contact status signals to PLC for remote monitoring and fault alarm interlock.
                                                                                                                                                                                                              5. Integrated Surge Suppression

                                                                                                                                                                                                                Built-in MOV transient suppression to absorb coil inductive surge, protecting low-voltage control circuits and upstream PLC I/O modules.
                                                                                                                                                                                                              6. Standardized Interface for Medium Voltage Cabinets

                                                                                                                                                                                                                Matches CENTERLINE medium voltage MCC architecture; supplied with dedicated wiring harness for direct connection to Bulletin 1502 contactor coils.

                                                                                                                                                                                                              Key Advantages

                                                                                                                                                                                                              • Universal wide-range AC/DC control power eliminates separate transformer design for global voltage standards.
                                                                                                                                                                                                              • Integrated digital regulation ensures consistent contactor pull-in performance despite grid voltage fluctuations.
                                                                                                                                                                                                              • All-in-one modular design reduces wiring volume, replacing bulky multi-relay traditional control panels.
                                                                                                                                                                                                              • Rich diagnostic status outputs enable remote fault diagnosis via upper-level control systems.
                                                                                                                                                                                                              • Tunable dropout timing optimizes arc suppression for medium voltage motor switching loads.
                                                                                                                                                                                                              • Robust metal enclosure with heat dissipation vents adapts to high-temperature industrial power rooms.

                                                                                                                                                                                                              Typical Applications

                                                                                                                                                                                                              Medium voltage motor control cabinets (MCCs), mine and mineral processing main motor starters, large water pump / fan medium voltage soft starter assemblies, metallurgy high-power motor control, oil & gas field medium voltage motor switchgear, heavy industry CENTERLINE 1500/1900 medium voltage control centers.




The structure and details of the product:

 Please make an inquiry for more models

Allen-Bradley 2755-DD4A

Allen-Bradley 8000-MBC

Allen-Bradley 8000-MBC2

Allen-Bradley 2755-DM6

Allen-Bradley 803M-NX3

Allen-Bradley 836-C7JX15A

Allen-Bradley 6189V-CPUPFM3

Allen-Bradley 74102-372

Allen-Bradley 74103-119

Allen-Bradley 63-0065

Allen-Bradley 8000-MBC2Z

Allen-Bradley 8000-MDB

Allen-Bradley 2755-DM9

Allen-Bradley 803-NK34

Allen-Bradley 575-663

Allen-Bradley 634176-90

Allen-Bradley 74103-236

Allen-Bradley 74103-244

Allen-Bradley 634490-9004

Allen-Bradley 575V-AC

Allen-Bradley 836-NX383057

Allen-Bradley 2755-DS1A

Allen-Bradley 8000-MDBZ

Allen-Bradley 8000-MDC

Allen-Bradley 803-NK35

Allen-Bradley 5820-EI

Allen-Bradley 634571-02

Allen-Bradley 77131-222

Allen-Bradley 7930-PA

Allen-Bradley 634624-02

Allen-Bradley 592-C1LD

Allen-Bradley 803-NK37

Allen-Bradley 2755-DS1Allen-Bradley1-R1



 Other best-selling products:

Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Related products

2094-BM01-S
Allen-Bradley 2094-BM01-S multi-axis servo drive

ALLEN-BRADLEY  2094-BM01-S multi-axis servo drive

Details
1756-PB75
Allen-Bradley 1756-PB75 DC Power Module

Allen-Bradley 1756-PB75 DC Power Module

Details
1756-RIO
Allen-Bradley 1756-RIO Remote I/O Communication Module

Allen-Bradley 1756-RIO Remote I/O Communication Module

Details
6181F-15TPXP
Allen-Bradley 6181F-15TPXP Integrated Display Industrial Computer

Allen-Bradley 6181F-15TPXP Integrated Display Industrial Computer

Details
1762-L24AWA
Allen-Bradley 1762-L24AWA Programmable Controller

Allen-Bradley 1762-L24AWA Programmable Controller

Details
2094-EN02D-M01-S0
Allen-Bradley 2094-EN02D-M01-S0 EtherNet/IP Safe Torque Off Control Module

Allen-Bradley 2094-EN02D-M01-S0 EtherNet/IP Safe Torque Off Control Module

Details
1756-L73S
Allen-Bradley 1756-L73S GuardLogix Controller

Allen-Bradley 1756-L73S GuardLogix Controller

Details

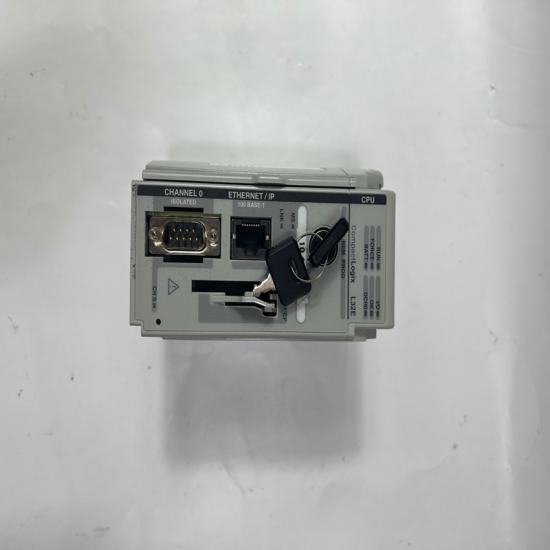

1769-L32E
