- - Schneider XB4-BD21 Harmony Selector Switch

    Overview

    22mm panel metal selector switch of Schneider Harmony XB4 series, 2-position self-locking type, used for local/remote mode switching, equipment manual/automatic selection in control cabinets and machine operation panels.

    Core Specifications

    Mechanical Structure

    Mounting aperture: Standard 22mm

    Handle type: Short black rotary handle

    Gear position: 2 stable positions, self-locking (no automatic rebound)

    Bezel: Zinc alloy metal chrome-plated frame, wear-resistant and impact-resistant

    Mechanical service life: 300,000 switching cycles

    Installation form: Front panel mounting

    Contact Configuration & Electrical Parameters

    Built-in contact block: 1NO

    Rated insulation voltage Ui: 690V

    AC-15 control load: 6A/120V, 3A/240V

    DC-13 load: 0.55A/125V, 0.27A/250V

    Wiring terminals: Screw clamp terminals for 0.22~1.5mm² cables

    Environmental & Protection Grade

    Protection rating: IP66, IP67, IP69K

    NEMA 4X / 13

    Operating temperature: -40℃ ~ +70℃

    Dustproof, waterproof, oil-resistant, suitable for harsh workshop environments

    Certification: CE, UL, CSA, CCC, RoHS Green Premium

    Key Features

    Two-position self-locking structure, maintains selected state after rotation without holding

    All-metal decorative ring, strong anti-collision, long service life

    High waterproof and dustproof grade, adaptable to equipment that needs regular high-pressure washing

    Modular split design, handle, contact block can be replaced separately for easy maintenance

    Simple panel assembly, widely matched with XB4 series push buttons, indicator lights for unified panel layout

    Applications

    Manual/automatic mode switching of fans, pumps and conveyors; local/remote control switching of production lines; on-off circuit selection of auxiliary equipment; machine tool operation panel mode selection; HVAC equipment control switch.

The structure and details of the product：

Please make an inquiry for more models

SCHNEIDER BMXCPS3020

SCHNEIDER BMXXBP0400

SCHNEIDER BMXXBP0600

SCHNEIDER BMXXBP0800

SCHNEIDER BMXXBP1200

SCHNEIDER BMXDDI3202K

SCHNEIDER BMXDDI6402K

SCHNEIDER BMXDDO1602

SCHNEIDER BMXDRA1605

SCHNEIDER BMXDRA0805

SCHNEIDER BMXDDO3202K

SCHNEIDER BMXDDO6402K

SCHNEIDER BMXAMI0410

SCHNEIDER BMXART0414

SCHNEIDER BMXART0814

SCHNEIDER BMXAMM0600

SCHNEIDER BMXAMI0800

SCHNEIDER BMXAMI0810

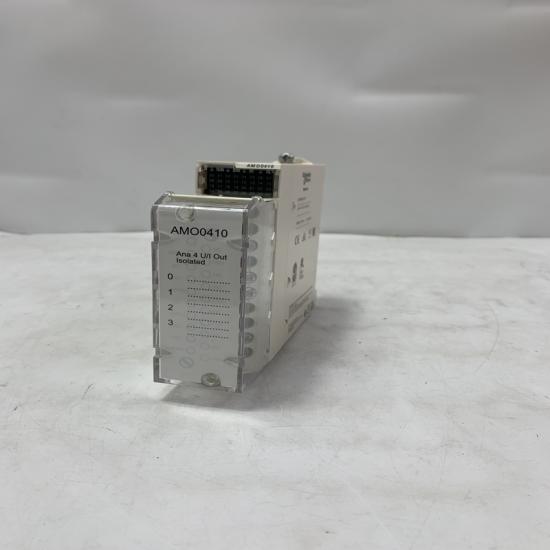

SCHNEIDER BMXAMO0410
