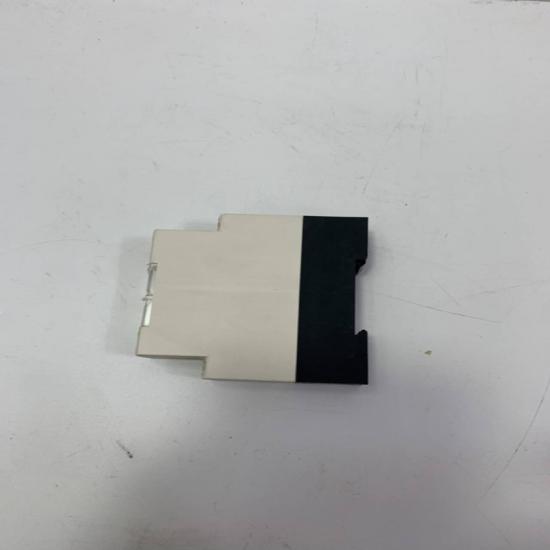

SCHNEIDER BMXART0414H Analog Input Module

Product Overview
The SCHNEIDER BMXART0414H is a Modicon X80 series analog input module designed for Modicon M340 / M580 PLC systems. It is a 4-channel high-precision low-level input module used for measuring very small signals such as millivolt, thermocouple, RTD, and resistance inputs. It is suitable for severe industrial environments (H version = extended temperature + rugged design).

Specifications

• Brand: Schneider Electric
• Model: BMXART0414H
• Series: Modicon X80
• Product Type: Analog Input Module
• Input Channels: 4 channels
• Input Type: Low-level isolated analog inputs
• Signal Ranges:
  • ±40 mV / ±80 mV / ±160 mV / ±320 mV / ±640 mV
  • ±1.28 V
  • RTD (Pt100, Pt1000, Ni100, etc.)
  • Thermocouple types supported
• Resolution: 15-bit + sign (high precision)
• Conversion: Sigma-Delta ADC
• Isolation: Channel-to-channel and bus isolation
• Connection: 40-way front connector
• Mounting: Modicon X80 rack (M340 / M580 compatible)
• Operating Temperature: -25°C to +70°C (H version)
• Scan Time: approx. 400 ms (depending on configuration)

Advantages & Features

• Supports very low-level analog signals (mV range)
• High accuracy 15-bit resolution measurement
• Multi-signal compatibility (voltage, RTD, thermocouple, resistance)
• Strong electrical isolation for industrial safety
• Designed for harsh industrial environments (H version ruggedized)
• Stable performance in continuous process control
• Easy integration with M340 / M580 PLC systems

Applications

• Temperature measurement systems (RTD / thermocouple)
• Industrial process automation
• Chemical and petrochemical plants
• Power generation systems
• High-precision sensor signal acquisition
• Food, beverage, and pharmaceutical production
• Water treatment monitoring systems

Precautions

• Use only compatible Modicon X80 backplane system
• Ensure correct wiring for low-level signals (noise sensitive)
• Avoid long unshielded cables (signal interference risk)
• Proper grounding required for stable readings
• Do not exceed specified input voltage limits
• Configure correctly in Control Expert / Unity Pro software
