Schneider Electric 170ADI35000 Discrete Input Module

Product Overview

The 170ADI35000 is a 32-channel discrete input module designed for Schneider’s Modicon Momentum automation platform. It provides 24V DC signal acquisition for industrial control systems, enabling reliable monitoring of switch states, sensor signals, and other digital inputs in harsh environments .

Key Features

✅ High-Density Inputs

• 32 discrete input channels, divided into 2 groups of 16 for flexible signal grouping .

• 24V DC logic level: Recognizes ≥18V as "1" (ON) and ≤5V as "0" (OFF) .

✅ Robust Isolation & Protection

• 500V AC isolation between channels and ground to prevent noise interference .

• Surge protection for stable operation in electrically noisy environments .

✅ Industrial Durability

• Operating temperature: 0°C to +60°C with 95% humidity tolerance (non-condensing) .

• DIN rail or panel mounting for easy integration .

✅ Diagnostics & Indicators

• LED status lights per channel group for quick fault identification .

✅ Compliance & Safety

• Certifications: UL 508, CE, FM (Class I, Division 2) .

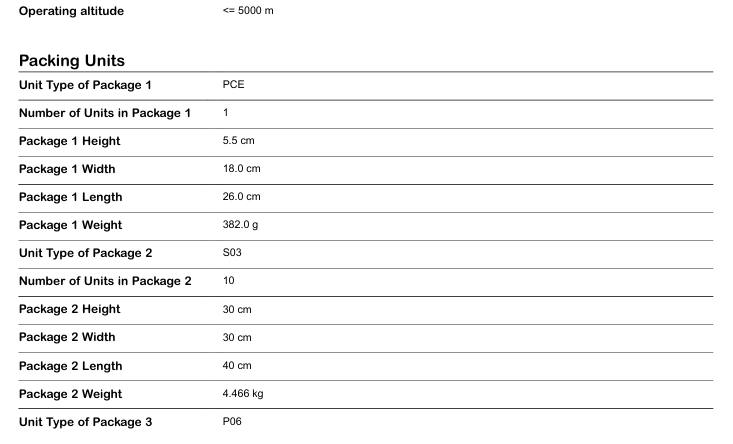

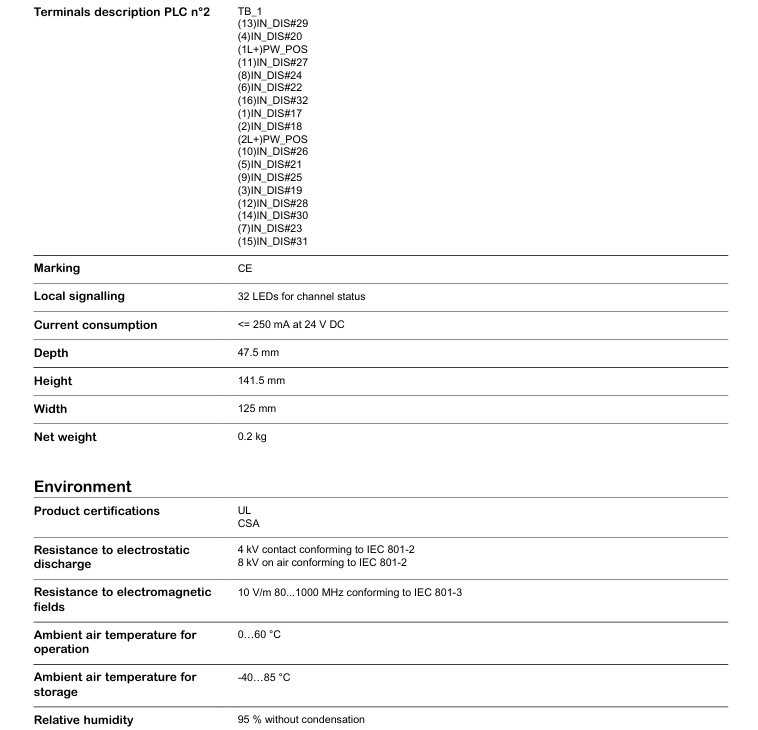

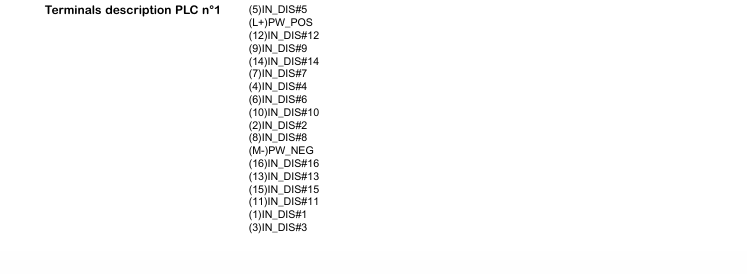

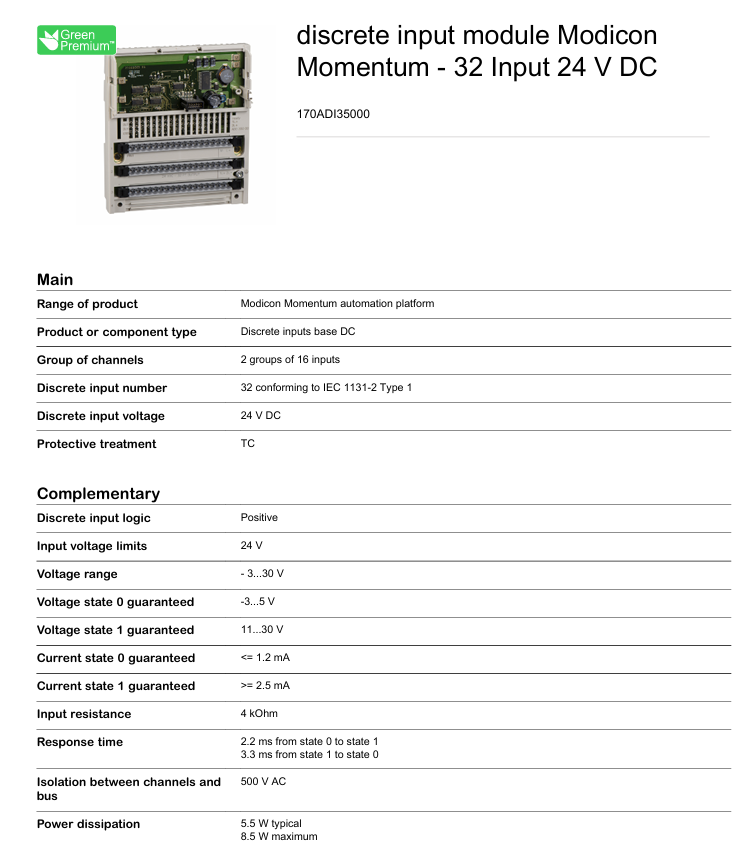

Technical Specifications

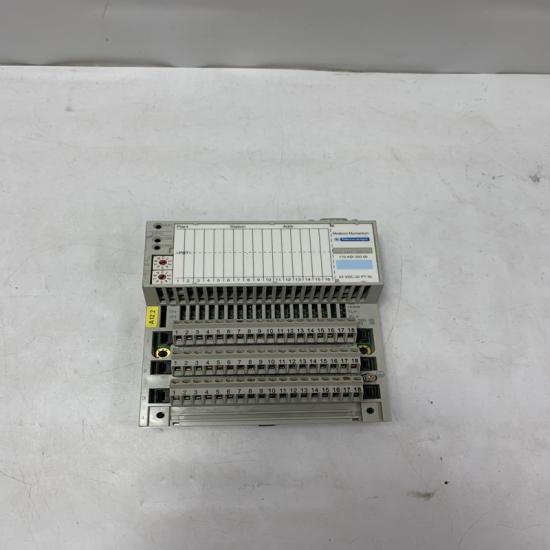

The structure and details of the product：

The structure and details of the product：
