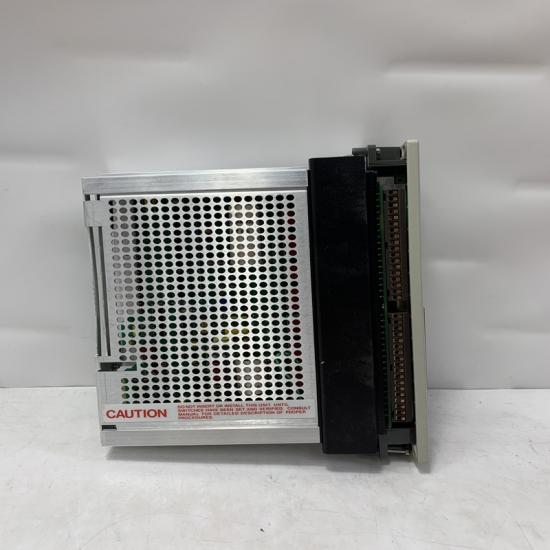

Schneider 140CPU67160S Modicon Quantum Hot Standby Safety CPU

Overview

Core Specifications

1. Hardware Performance

• Processor: PowerPC 603e, 266 MHz clock, dedicated math coprocessor for floating-point calculation
• Instruction speed: Boolean instruction ~0.09–0.12 µs, complex numeric & safety logic fast execution
• Memory: Built-in 1024 kB RAM (512 kB data memory); expandable via PCMCIA card to 7168 kB program memory + 8 MB file storage
• Backup: 3V lithium battery for program & data retention during power failure
• LCD display: 2-line 16-character front panel LCD with operation keys, fault status real-time display
• Dimension: 80×130×250 mm, weight 1.18 kg, Quantum backplane rack mounting

2. Integrated Communication Ports

• Dual independent 10/100 Mbps Ethernet (Modbus TCP, hot standby sync, HMI/MES connection)
• Modbus Plus (MB+) local bus
• RS232/485 Modbus serial port for programming & field devices
• USB local service port for quick commissioning
• Supports up to 6 external Ethernet NOE modules for multi-network expansion

3. I/O & System Capacity

• Max 2 local racks, up to 31 remote I/O stations
• Supports massive discrete & analog I/O, scalable for large plant-wide control
• Native hot standby redundancy, paired with redundant CPU, fault switchover time <500ms

4. Software & Safety Compliance

• Programming software: Unity Pro XL Safety
• Supported languages: Ladder Diagram, Structured Text, FBD, IL, SFC
• Meets industrial safety standards, suitable for safety interlock logic operation

Key Features

1. Hot Standby Redundancy

   Real-time data mirroring between master & standby CPU; seamless automatic switchover on main CPU fault, no process interruption.
2. Safety Logic Execution

   Certified safety processor, independently runs safety interlock, emergency stop, over-limit protection logic for critical equipment.
3. Multi-network Integration

   Dual Ethernet isolates control network & management network, connect HMI, SCADA, remote I/O and upper factory MES system simultaneously.
4. On-site Diagnostics

   Front LCD directly shows rack fault, I/O error, communication alarm, CPU status without extra software.
5. Expandable Storage

   PCMCIA card supports data logging, recipe storage, program backup for long-term process record.

Applications

• Power plant, water & wastewater treatment, chemical process control
• Oil & gas pipeline, pharmaceutical production lines
• Large metallurgy, mining, high-reliability manufacturing automation
• Building central control, critical infrastructure with non-stop operation demand
