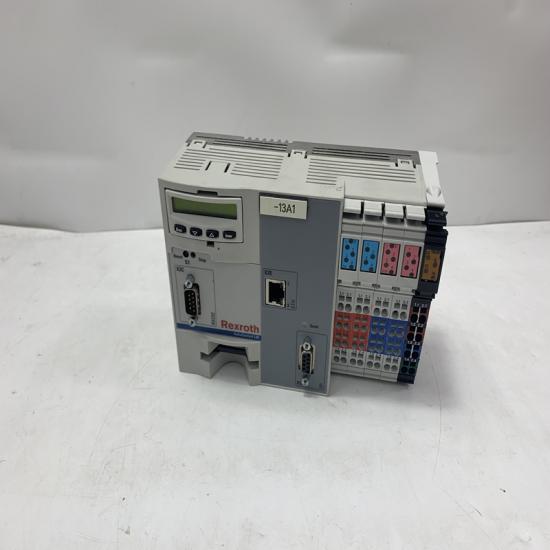

Rexroth RMA02.2-32-DC024-050 Control Module

REXROTH RMA02.2-32-DC024-050 Digital Output Module

Important: The RMA02.2-32-DC024-050 is more accurately a RECO/SYNAX 200 Digital Output Module, rather than a general-purpose Control Module.

Product Overview
The Bosch Rexroth RMA02.2-32-DC024-050 is a 32-channel 24 VDC digital output module designed for connecting digital actuators such as solenoid valves, contactors, and indicator lights. It uses FET transistor switching with four electrically isolated groups.

Technical Specifications

• Model: RMA02.2-32-DC024-050
• Material No.: R911280931
• Series: RECO / SYNAX 200
• Type: Digital Output Module
• Number of Outputs: 32
• Output Voltage: 24 VDC
• Output Type: FET transistor switch
• Output Current: 0.5 A per output
• Configuration: 4 isolated groups × 8 outputs
• Protection: Internal current limiting and short-circuit protection
• Power Dissipation: Approx. 2.5 W
• Weight: Approx. 300 g
• Dimensions: Approx. 192 × 41.3 × 81 mm

Advantages & Features

• 32 high-density digital outputs
• Fast and reliable FET transistor switching
• Four electrically isolated output groups
• Built-in current limitation and short-circuit protection
• Designed for industrial actuator control

Applications

• Industrial automation
• SYNAX 200 motion-control systems
• Solenoid valve control
• Contactor and relay control
• Indicator and actuator control
