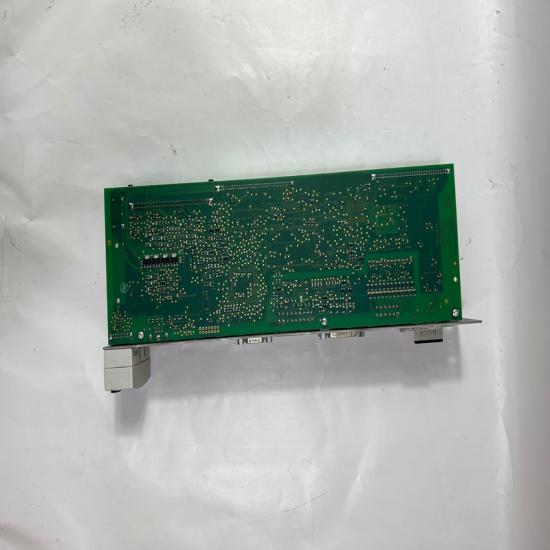

Rexroth HDS02.2-W040N-HS12-01-FW Drive Controller

Rexroth HDS02.2-W040N-HS12-01-FW Drive Controller

Product Description

The Rexroth HDS02.2-W040N-HS12-01-FW is a DIAX04 HDS Series Drive Controller from Bosch Rexroth Indramat. It is designed for high-performance servo drive applications, providing precise control of rotary and linear motors. The controller supports SERCOS communication and modular expansion through plug-in interface cards for industrial automation and CNC motion control systems.

Technical Specifications

• Brand: Bosch Rexroth / Indramat
• Model: HDS02.2-W040N-HS12-01-FW
• Product Type: Servo Drive Controller
• Series: HDS Series / DIAX04
• Rated Current: 40 A
• Input Voltage: 530–670 VDC
• Maximum Output Voltage: 500 V
• Maximum Output Frequency: 1000 Hz
• Control Power Consumption: 20 W
• Power Dissipation: 125 W
• Communication Interface: SERCOS
• Cooling Method: Internal air blower
• Protection Rating: IP10
• Weight: Approx. 6.5 kg
• Firmware: FW version dependent (firmware not included in some configurations)

Advantages & Features

• High-performance servo motion control
• Supports rotary and linear motor applications
• SERCOS interface for fast industrial communication
• Modular design with expansion slots for I/O and interface cards
• Integrated cooling fan for stable operation
• High current capability for demanding automation systems
• Reliable solution for CNC and precision motion applications

Applications

• CNC machine tools
• Robotics systems
• Printing machinery
• Packaging equipment
• Machine automation systems
• Precision positioning systems
• Industrial motion control applications

Notes / Precautions

• Verify compatibility with the existing DIAX04 system before replacement
• Confirm motor type, feedback system, and parameter settings
• Check SERCOS communication configuration
• Ensure correct DC bus voltage and wiring
• Firmware and software configuration may need to match the application
• Installation and commissioning should be performed by qualified technicians
