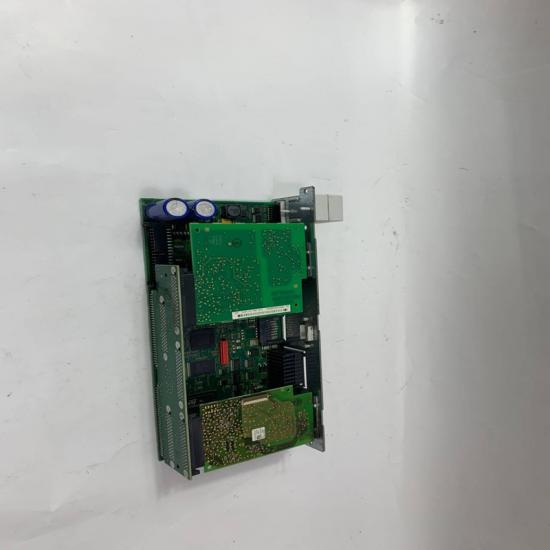

Rexroth CLM01.4-P-N-2-B-FW Controller Module

Rexroth CLM01.4-P-N-2-B-FW

4‑Axis Servo Controller Module (Indramat CLM Series)

Specifications

• Axes: 4 fully programmable servo axes
• Processor: Motorola 68000, real‑time motion OS
• Memory: 256 KB EPROM (firmware), 128 KB RAM (program/parameters), lithium battery backup
• Control Voltage: 24 VDC (control logic)
• Fieldbus: PROFIBUS‑DP Slave (P = Profibus)
• Display/Keypad: Integrated LCD + 16‑key keypad, backlit (B = backlight)
• I/O: 32×DI / 32×DO standard; expandable (N = no extra I/O expansion)
• Encoder Interfaces: 4× incremental encoder inputs (A/B/Z)
• Drive Interface: Rexroth Indramat servo drives (TDM/TVM series)
• Programming: Onboard keypad or PC via serial; multi‑language support
• Dimensions: 330 × 105 × 390 mm (D×W×H)
• Weight: ~6 kg (13.3 lbs)
• Mounting: Cabinet panel mount
• Protection: IP20
• Operating Temp: 0°C to +45°C
• Certifications: CE, UL, cULus

Key Features

• All‑in‑One Motion Control: 4‑axis positioning, interpolation, electronic gearing; eliminates separate PLC
• PROFIBUS‑DP Connectivity: Seamless integration with PLC systems
• Onboard Programming & Diagnostics: LCD/keypad for setup, tuning, and troubleshooting
• Battery‑Backed Memory: Retains programs/parameters during power loss
• High‑Precision Positioning: Supports mm/inch/degree units, absolute/incremental programming
• Compact & Rugged: Industrial‑grade design for harsh environments

Applications

• Multi‑Axis Machine Tools: Milling, drilling, tapping machines
• Packaging Machinery: Form/fill/seal, labeling, cutting systems
• Material Handling: Conveyors, gantries, pick‑and‑place
• General Automation: Any 4‑axis synchronized motion application
