HIMA F6706 Analog Output Module
Item NO.:
F6706Payment:
T/TPrice:
$1000Product Origin:
GermanyColor:
NEWProduct weight:
0.22kgLead Time:
in stockWe will arrange delivery within 3-5 days after receiving the payment.
Our express delivery: DHL and FedEx.
Quality packing for each product
Destination country all taxes & duty to be paid by buyer
Only part of the brand and model, if you have other product needs, please contact us.
HIMA F6706 Analog Output Module
The HIMA F6706 is a foldable analog output module designed for industrial automation and safety systems, particularly in oil & gas, power plants, and chemical processing. It provides high-precision analog signal output with SIL 3 certification (IEC 61508), ensuring reliable operation in critical environments .
Dual-channel analog output for voltage (0–5/10V) or current (0/4–20mA) signals .
12-bit resolution for precise control of actuators and sensors .
Safety isolation between field and system sides (1000V AC) .
Wide input range:
Voltage: 0–5V (scalable to 0–10V).
Current: 0–22mA (via shunt resistor) .
Compact and rugged design with conformal coating for harsh industrial environments .
| Parameter | Details |
|---|---|
| Output Channels | 2× analog (voltage/current) |
| Output Ranges | Voltage: 0–5V/0–10V, Current: 0/4–20mA |
| Resolution | 12-bit (0–4095 counts) |
| Accuracy | ±0.1% F.S. (voltage), ±0.2% F.S. (current) |
| Isolation | 1000V AC (field-to-system) |
| Input Resistance | 100 kΩ (voltage mode) |
| Power Supply | 24V DC (via backplane) |
| Operating Temp. | -20°C to +60°C |
Process Control Systems: Regulates temperature, pressure, and flow in refineries .
Power Plant Automation: Controls turbine valves and actuators .
Chemical & Pharmaceutical: Ensures precise dosing in batch processes .
Works with:
HIMax/HIMatrix safety systems .
Remote I/O networks via SafeEthernet or Profibus.
Configuration:
Programmed via HIMA SILworX engineering software .

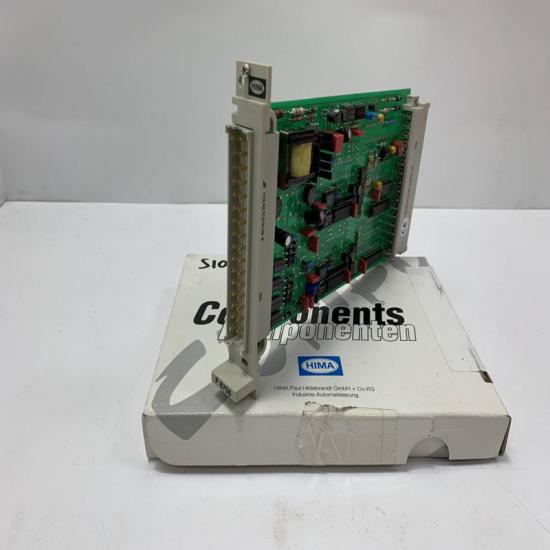

The structure and details of the product：
