HIMA F1 DI 16 01 Digital Input Module
Item NO.:
F1 DI 16 01Payment:
T/TPrice:
$1130Product Origin:
GermanyColor:
NEWProduct weight:
0.86KGLead Time:
in stockWe will arrange delivery within 3-5 days after receiving the payment.
Our express delivery: DHL and FedEx.
Quality packing for each product
Destination country all taxes & duty to be paid by buyer
Only part of the brand and model, if you have other product needs, please contact us.
The HIMA F1 DI 16 01 is a HIMatrix safety-related Remote I/O device with 16 digital inputs. It communicates with HIMA safety controllers through SafeEthernet and is designed for safety-critical industrial automation applications. HIMA specifies SIL 3 / Category 4 / PL e capability.
| Parameter | Specification |
|---|---|
| Brand | HIMA |
| Model | F1 DI 16 01 |
| Product Type | Safety Digital Input Remote I/O |
| System | HIMatrix |
| Digital Inputs | 16 |
| Input Type | 24 VDC Digital |
| Input Isolation | Non-galvanically isolated |
| High Level | 15–30 VDC |
| Low Level | ≤5 VDC |
| Typical Switching Point | 7.5 VDC |
| Switching Time | 250 μs |
| Line Monitoring | Cross-wire / line fault monitoring |
| Ethernet | 2 × RJ45, 10/100Base-TX integrated switch |
| Power Supply | 24 VDC, -15% to +20% |
| Max. Current Input | 0.8 A |
| Operating Temperature | 0 to +60°C |
| Storage Temperature | -40 to +85°C |
| Protection | IP20 |
| Dimensions | Approx. 152 × 114 × 66 mm |
| Weight | Approx. 0.7 kg |
| Safety Rating | SIL 3 / Cat. 4 / PL e |
The F1 DI 16 01 also provides 4 pulsed outputs used for input line monitoring, rather than being a simple 16-channel input card.

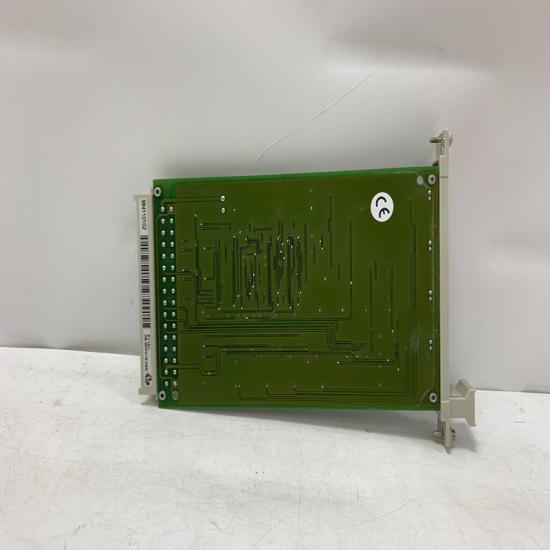

The structure and details of the product：
