Foxboro SRI990-BIMS7EAA-Y Valve Positioner

• • • • • Foxboro SRI990-BIMS7EAA-Y Valve Positioner (Smart Electro-Pneumatic Positioner – I/A Series / SRD/SRI990 family)

        • Product Information

          • Brand: Foxboro (Schneider Electric / Eckardt series)
          • Model: SRI990-BIMS7EAA-Y
          • Type: Smart electro-pneumatic valve positioner
          • Input signal: 4–20 mA control signal (from DCS/PLC)
          • Output: Pneumatic air pressure to actuator (0–6 bar typical)
          • Function: Closed-loop valve positioning with feedback
          • Mounting: Direct mount on pneumatic actuator (NAMUR/IEC 60534)



          ---

          What it actually is

          This device is used to precisely position a control valve, meaning:

          • Receives 4–20 mA signal from DCS/PLC
          • Converts it into pneumatic air pressure
          • Moves valve actuator to exact position
          • Uses internal feedback to correct positioning (closed-loop control)

          It does NOT:

          • Execute control logic ❌
          • Act as PLC/DCS module ❌
          • Process multiple I/O signals ❌
          • Replace a controller ❌

          ---

          System Role (Simple)

          PLC / DCS controller
          → 4–20 mA signal
          → SRI990 positioner (this unit)
          → pneumatic actuator
          → control valve opens/closes precisely
          → regulates flow / pressure / temperature

          So it acts like a “smart interface between electronic control and pneumatic valve motion.”

          ---

          Key Features

          • Electro-pneumatic conversion (electrical → air pressure)
          • Closed-loop feedback valve positioning
          • Supports single acting or double acting actuators (variant dependent)
          • ATEX/IECEx hazardous area versions available
          • High positioning accuracy and stability
          • Low air consumption design

          ---

          Typical Applications

          • Oil & gas pipeline control
          • Refinery process valves
          • Chemical dosing systems
          • Steam and pressure control loops
          • Power plant process control
          • Any pneumatic control valve system

          ---

          Advantages

          • High accuracy valve positioning
          • Stable control with minimal oscillation
          • Improves process efficiency and safety
          • Works with standard 4–20 mA control systems
          • Robust industrial design for harsh environments

          ---

          Important Notes

          • Not PLC ❌
          • Not DCS controller ❌
          • Not I/O module ❌
          • Not sensor only ❌
          • It is a field-mounted smart valve positioner ✔

          ---

          Precautions

          • Requires clean, dry instrument air
          • Must be calibrated after installation
          • Incorrect tuning can cause valve hunting or instability
          • Must match actuator type (rotary/linear, single/double acting)
          • Proper mounting alignment is critical for accuracy

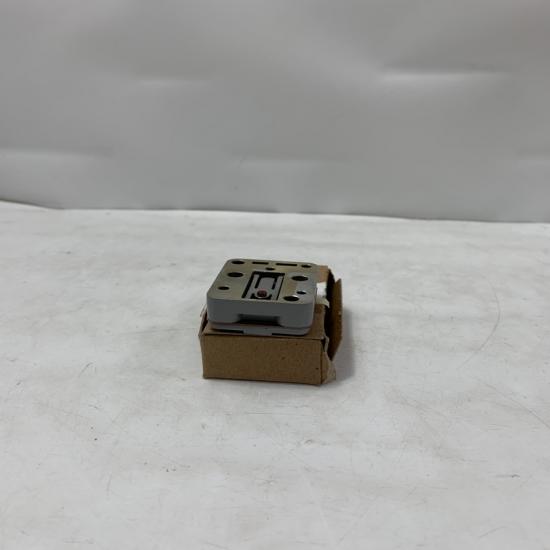

The structure and details of the product：
