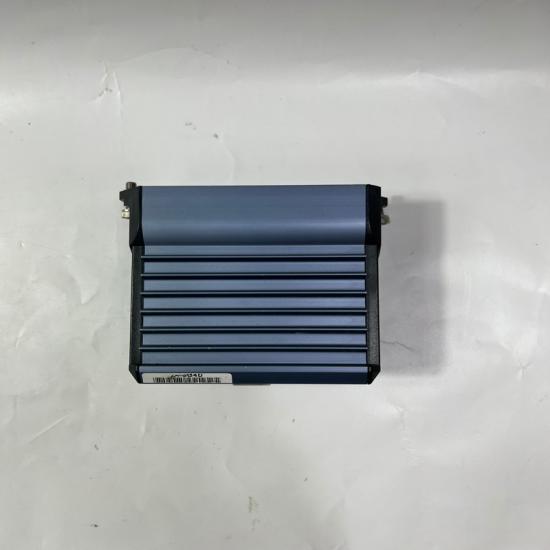

Foxboro FBM214B Communication Input Module

Overview

Core Hardware & Electrical Specifications

1. Channel Configuration

• 8 independent channels, each with complete galvanic isolation (channel-to-channel, channel-to-ground, channel-to backplane logic)
• Mixed signal support: ordinary 4–20mA transmitters + HART FSK superimposed signal transmitters (pressure, temperature, flow, level transmitters)
• Each channel built-in independent FSK HART modem for bidirectional digital communication

2. Loop Power Supply

• Per-channel isolated 24VDC ±10% current-limited loop power supply (internal power supply for 2-wire transmitters)
• Optional external loop power supply; shared external power requires cable balun to eliminate HART crosstalk

3. Conversion Precision Parameters

• ADC resolution: 15-bit Sigma-Delta high-precision conversion
• Basic accuracy: ±0.03% full scale
• Temperature drift: 50ppm/℃
• Channel refresh cycle: 100ms; HART message polling rate: 2 messages/second per channel
• Common-mode rejection >100dB (50/60Hz industrial power frequency anti-interference)

4. Transmission & Environmental

• HART standard compliance: HCF_SPEC-54 Rev8.1, maximum transmission distance 3030m
• Operating temperature: -20℃ ~ +70℃, Class G3 harsh industrial environment adaptability
• Installation: Plug-in backplane rack installation, matched with dedicated TA terminal base (compression terminal / ring lug terminal two types)
• Hazardous certification: UL Class I Div2, Ex nA IIC T4 Zone 2 explosion-proof associated equipment

HART Communication Capabilities

1. Supports all HART universal commands, common practice commands and instrument-specific commands, configured via DCS Field Device Expert software
2. Real-time reading of instrument secondary data: temperature, sensor calibration status, device tag, fault diagnosis, range parameters
3. Remote parameter modification, zero calibration, alarm interlock configuration for HART transmitters
4. Limitation: Does not support HART burst mode high-speed reporting

Key Features

1. Single-card mixed access: Free mixing of ordinary 4–20mA transmitters and HART smart instruments, reducing I/O card type inventory
2. Channel independent isolation design, effectively suppress field ground loop interference and improve system stability
3. Independent loop power supply for each channel, short circuit of single channel will not affect other measuring points
4. Rich instrument diagnostic functions: DCS real-time display transmitter fault, loop open/short circuit, deviation alarm
5. Rugged industrial card design, shock and vibration resistant, suitable for chemical, petrochemical, power and other heavy process industries
6. Unified I/A Series backplane bus communication, seamlessly connected to Foxboro CP controller
