Foxboro FBM201 P0916AA Analog Input Module

• • • • • • • • • FOXBORO FBM201 P0916AA Analog Input Module

                • Product Overview

                  The Foxboro FBM201 P0916AA is an 8-channel analog input interface module used in the Foxboro I/A Series (Compact 200 DCS system). It is designed to acquire 0–20 mA DC analog signals from field instruments and convert them into digital signals for the control processor.

                  It is widely used in critical process control environments such as oil & gas, chemical plants, and power generation systems.

                  ---

                  Key Specifications

                  • Brand: Foxboro (Schneider Electric)
                  • Model: FBM201 P0916AA
                  • Series: Compact 200 / I/A Series DCS
                  • Type: Analog Input Interface Module
                  • Channels: 8 independent input channels
                  • Input Signal: 0–20 mA DC (2-wire transmitter compatible)
                  • Channel Isolation: Galvanically isolated per channel
                  • A/D Conversion: Sigma-delta conversion per channel
                  • Resolution: High precision (typically 16-bit class)
                  • Update Time: ~20–50 ms per scan (system dependent)
                  • Communication: Redundant 2 Mbps fieldbus to FCP/FCM
                  • Power Supply: 24 V DC (redundant supported)
                  • Mounting: Compact 200 baseplate / rack system

                  ---

                  Advantages & Features

                  • High accuracy multi-channel isolated analog input
                  • Strong anti-interference design for industrial environments
                  • Stable sigma-delta conversion for precise measurement
                  • Modular DCS architecture for easy maintenance
                  • Supports harsh environment operation (Class G3)
                  • Hot-replaceable module in many system configurations

                  ---

                  Applications

                  • Oil & gas processing plants
                  • Petrochemical industry
                  • Power plants
                  • Refinery automation systems
                  • Water treatment facilities
                  • Large-scale industrial DCS control systems

                  ---

                  Precautions

                  • Must be installed in Foxboro Compact 200 baseplate system
                  • Requires correct termination assembly (P0916AA / TA module)
                  • Ensure correct 0–20 mA wiring for field transmitters
                  • Use shielded cables to reduce noise interference
                  • Do not mix with incompatible FBM modules
                  • Configuration must be done via Foxboro engineering software

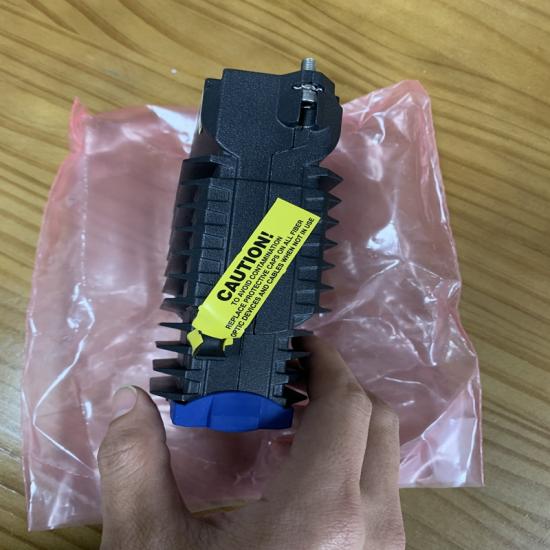

The structure and details of the product：
