EMERSON KJ1501X1-BC3 System Dual Twisted Pair Extender

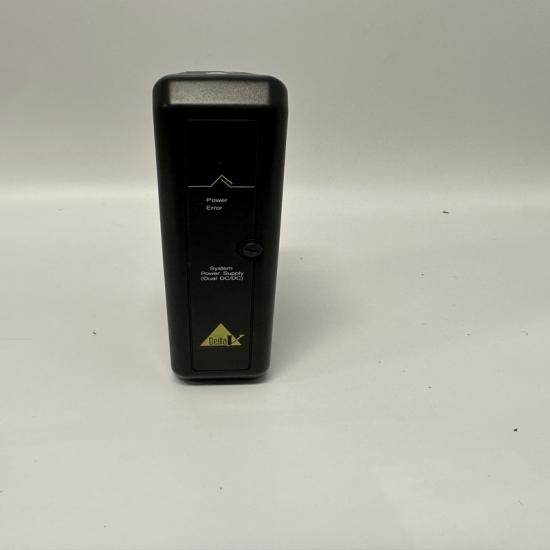

EMERSON KJ1501X1-BC3 (DeltaV System Dual DC Power Supply)

Specifications

• Model: KJ1501X1-BC3 (also 12P3935X022 / VE5009)
• System: Emerson DeltaV DCS
• Type: Dual Redundant DC/DC Power Supply
• Input:
  • 24 VDC (19.2–28.8 VDC), 5.4 A typical
  • 12 VDC (11.5–12.6 VDC), 14.8 A typical
• Output:
  • 5.1 VDC @ 2.0 A
  • 3.4 VDC @ 2.0 A
  • Total: 10.2 W max
• Redundancy: Dual-channel, automatic load sharing, fault isolation
• Alarm Relay: 2 A @ 30 VDC / 250 VAC (dry contact)
• Mounting: DIN rail, compact 89 × 140 × 38 mm
• Weight: ~0.5 kg
• Temperature: -40°C ~ +70°C (operating)
• Certifications: CE, UL, RoHS, Class 1 Div.2 (hazardous areas)

Features

1. Dual redundancy: Continues operation if one input fails
2. High efficiency: >90%, natural convection cooling
3. Industrial-grade: Wide temp range, shock/vibration resistant
4. Integrated alarm: Relay contact for remote fault monitoring
5. DeltaV native: Designed for controllers & I/O modules

Applications

• Emerson DeltaV distributed control systems
• Redundant power for controllers, I/O cards, and network devices
• Process industries: chemical, oil & gas, power, water treatment
