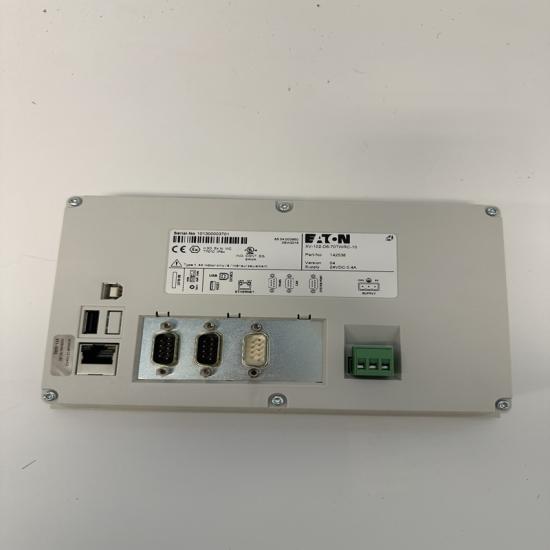

Eaton XV-102-D6-70TWRC-10 | HMI Touch Panel

Specifications

• Display: 7.0” TFT LED, WVGA 800×480, 64k colors, 250 cd/m²
• Touch: 4-wire resistive touch (glass-film sensor)
• Processor: 400 MHz RISC (HMI + PLC integrated)
• Memory: 64 MB DRAM, 128 MB Flash; SD card slot (expandable)
• OS: Windows CE 5.0 (pre-licensed)
• Power Supply: 20.4–28.8 VDC (24 VDC nominal), 0.4 A, max 9.6 W
• Communication Interfaces:
  • Ethernet 10/100 Mbps (Modbus TCP, EtherNet/IP)
  • CANopen (up to 1.5 Mbps)
  • RS-232, RS-485 (Modbus RTU)
  • USB 2.0 Host & Device
• Software: XSoft-CODESYS-3 (PLC), Galileo (visualization)
• Operating Temperature: 0 °C to +50 °C
• Mounting: Flush panel mount
• Dimensions (W×H×D): 210 × 130 × 45 mm
• Weight: Approx. 0.8 kg

Key Features

1. All-in-One HMI-PLC: Combines visualization, logic control, and communication in a single unit.
2. Rich Connectivity: Ethernet, CANopen, serial, and USB enable seamless integration with diverse automation devices.
3. Robust Design: Industrial-grade resistive touch, plastic housing, and wide operating temperature range.
4. Easy Engineering: CODESYS-based PLC programming and Galileo visualization software reduce development time.
5. Expandable Storage: SD card slot supports data logging, recipe storage, and firmware updates.

Applications

• Machine automation and production lines
• Packaging, material handling, and HVAC systems
• Industrial control panels and OEM machinery
• CANopen/Ethernet-based distributed control systems
