Item NO.:
PN1-100 259141Payment:
T/TPrice:
$650Product Origin:
AUSTRIAColor:
NEWProduct weight:
0.24kgLead Time:
in stockWe will arrange delivery within 3-5 days after receiving the payment.
Our express delivery: DHL and FedEx.
Quality packing for each product
Destination country all taxes & duty to be paid by buyer
Only part of the brand and model, if you have other product needs, please contact us.
The EATON PN1-100 (259141) is a three-pole switch-disconnector from the Eaton Moeller NZM series. It is designed for use as a main switch, maintenance isolator, or emergency-stop isolating switch in industrial electrical installations. It is not a control module.
|
Parameter |
Specification |
|---|---|
|
Brand |
Eaton / Moeller |
|
Model |
PN1-100 |
|
Catalog Number |
259141 |
|
Product Type |
Switch-Disconnector |
|
Product Series |
NZM |
|
Number of Poles |
3 |
|
Rated Current |
100 A |
|
Maximum Rated Operational Voltage |
690 V AC |
|
Rated Insulation Voltage |
690 V |
|
Rated Frequency |
50 Hz |
|
Switch Positions |
I / 0 |
|
Mounting |
Fixed installation |
|
Terminal Type |
Box terminals |
|
Protection Rating |
IP20 basic protection |
|
Dimensions (W × H × D) |
90 × 145 × 88 mm |
|
Weight |
Approx. 0.849 kg |
|
Standards |
IEC/EN 60947 |
Specifications are based on Eaton's official product data.
Three-pole isolation for industrial power circuits.
Suitable for main switching and maintenance isolation.
Lockable design helps support safe maintenance procedures.
Clear ON/OFF switching positions.
Supports installation in industrial control cabinets.
Industrial power distribution
Machinery main switches
Electrical maintenance isolation
Factory control panels
Emergency-stop isolation arrangements
This device is a switch-disconnector, not an automatic circuit breaker; provide appropriate short-circuit protection.
Verify voltage, current, terminal compatibility, and installation requirements.
Follow applicable electrical isolation and lockout procedures.
Confirm the exact catalog number and product condition before ordering.

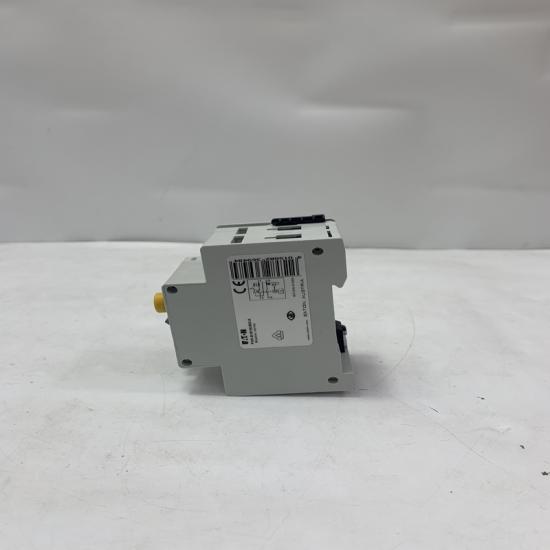

The structure and details of the product：
