BENTLY 3500/22M Transient Data Interface Module

Item NO.:
3500/22M
Payment:
T/T
Price:
$840
Product Origin:
USA
Color:
NEW
Goods stock:
3
Product weight:
0.23KG
Lead Time:
In stock

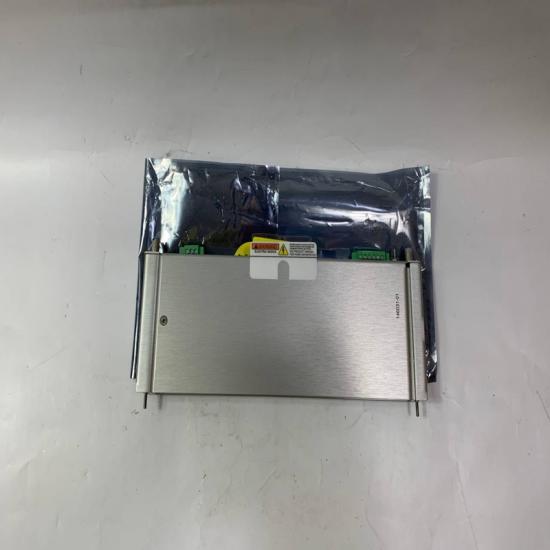

BENTLY NEVADA 3500/22M Transient Data Interface Module

The Bently Nevada 3500/22M is the Transient Data Interface (TDI) Module for the 3500 Machinery Condition Monitoring System. It serves as the interface between the 3500 rack and System 1 condition-monitoring software, collecting steady-state and transient waveform data from compatible M-series monitors. Bently Nevada describes the 3500/22M as the gateway to System 1 and a key interface within the 3500 rack.

Key Technical Specifications

Parameter	Specification
Brand	Bently Nevada
Model	3500/22M
Product Type	Transient Data Interface Module
Series	3500 Machinery Condition Monitoring
Typical Part No.	138607-01
Rack Position	Slot 1, next to power supply
Front Communication	USB-B
Ethernet	10Base-T / 100Base-TX
Fiber Option	100Base-FX
Ethernet Connector	RJ-45 for copper / MT-RJ for fiber
Copper Ethernet Distance	Up to 100 m
Fiber Distance	Up to 2,000 m
Power Consumption	10.5 W
Dynamic Waveform Channels	Up to 48 channels
Communication	BN Host Protocol / BN TDI Protocol
USB Speed	Up to 115.2 kbaud
Operating Temperature	-30 to +65°C
Humidity	95% RH, non-condensing

The module can collect static data as standard and, with the appropriate dynamic-data enabling configuration, collect waveform and transient data.

Advantages & Features

Central communication interface for the 3500 monitoring rack
Collects both steady-state and transient machinery data
Supports waveform acquisition for machinery diagnostics
USB-B port for configuration and data access
10/100 Mbps Ethernet communication
Optional fiber-optic Ethernet connectivity
Compatible with Bently Nevada System 1 condition-monitoring software
Front-panel status LEDs for system and communication diagnostics

Typical Applications

Steam and gas turbine monitoring
Compressor condition monitoring
Pumps and motors
Generator monitoring
Rotating machinery protection
Vibration and shaft-position monitoring
Oil & gas and petrochemical plants
Power generation and industrial plants

Important Precautions

The 3500/22M occupies Slot 1 of the 3500 rack, adjacent to the power supply.
Verify the exact part number and I/O configuration before replacement.
Copper and fiber Ethernet versions use different I/O modules and connectors.
Confirm the required dynamic-data configuration before commissioning.
Follow Bently Nevada 3500 installation, grounding and network requirements.
