BENTLY NEVADA 330130-045-00-05 3300 XL Standard Extension Cable

Product Overview

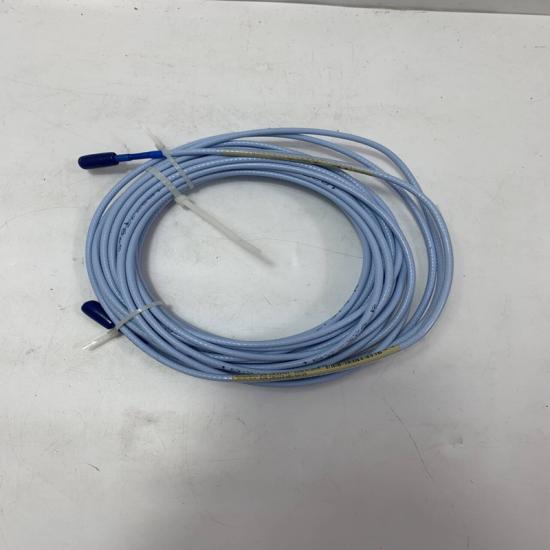

The Bently Nevada 330130-045-00-05 is a 3300 XL Standard Extension Cable designed for use in compatible Bently Nevada proximity transducer systems. It connects a compatible proximity probe to a Proximitor Sensor, transmitting eddy-current measurement signals for rotating machinery vibration and shaft-position monitoring.

Note: This model is an extension cable, not a proximity probe.

Key Technical Specifications

• Brand: Bently Nevada

• Model: 330130-045-00-05

• Product Series: 3300 XL

• Product Type: Standard Extension Cable

• Cable Length: 4.5 m (14.8 ft)

• Cable Option: Standard, unarmored cable

• Cable Construction: 75 Ω triaxial cable

• Insulation Material: Fluoroethylene propylene (FEP)

• Connector Type: Miniature coaxial connectors with compatible ClickLoc connection system

• Agency Approval Option: Multiple approvals, including CSA, ATEX, and IECEx

• Primary Function: Connects a compatible proximity probe to a Proximitor Sensor

• Compatible System: 3300 XL 8 mm proximity transducer system

Key Features

• Provides a reliable connection between a proximity probe and its Proximitor Sensor.

• Designed for industrial machinery condition-monitoring systems.

• Uses FEP-insulated triaxial cable construction.

• Supports accurate transmission of proximity measurement signals.

• Features a standard, flexible cable configuration for industrial installation.

• Includes the multiple-approval option identified by the model suffix.

Applications

• Turbine vibration monitoring

• Industrial compressor protection

• Pump and motor shaft monitoring

• Bearing vibration measurement

• Shaft displacement and position monitoring

• Bently Nevada 3300 XL machinery monitoring systems

Important Notes

• This product is an extension cable, not a standalone sensor or probe.

• Ensure the extension cable and probe lengths add up to the total system length required by the compatible Proximitor Sensor.

• Confirm compatibility with the installed probe series, connector type, and sensor configuration before ordering.

• Verify hazardous-area approval requirements for the complete installed system.

• Check the full part number and physical condition before installation or replacement.
