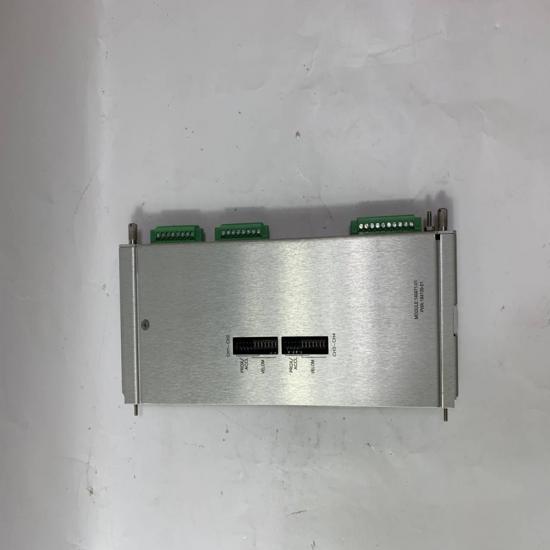

Bently Nevada 288055-01 Monitoring Module

Product Type: 3500/22M Transient Data Interface (TDI) Module
Part Number: 288055-01
Series: Bently Nevada 3500 Series
Manufacturer: Bently Nevada, a Baker Hughes company

Note: 288055-01 is technically a Transient Data Interface (TDI) Module, rather than a vibration-monitoring input module. It serves as the communication and data interface for the 3500 monitoring system.

Technical Specifications

Specifications are based primarily on the current Bently Nevada/Baker Hughes datasheet.

Advantages & Features

• Advanced Data Interface: Connects the 3500 monitoring rack with System 1 condition monitoring software.
• Real-Time Data Collection: Continuously collects steady-state and transient waveform data.
• High-Resolution Waveform Support: Supports waveform acquisition for up to 48 channels when appropriately enabled.
• Multiple Communication Options: Supports copper Ethernet, fiber-optic Ethernet and USB configuration.
• Keyphasor Support: Supports up to four Keyphasor signals for speed and phase-related monitoring.
• Alarm Data Capture: Records pre- and post-alarm information for detailed machine diagnostics.
• Easy Configuration: Front-panel USB port and rack reset function simplify commissioning and maintenance.
• Reliable Industrial Design: Designed for continuous operation in industrial monitoring environments.

Typical Applications

• Steam and gas turbine monitoring
• Compressor monitoring
• Generator and motor condition monitoring
• Pump and fan monitoring
• Petrochemical and refinery equipment
• Power generation plants
• Industrial rotating machinery
• Predictive maintenance and machinery diagnostics

The 3500 system is widely used for critical machinery protection and condition monitoring across industrial facilities.

Important Notes

• Compatibility: Confirm compatibility with the existing 3500 rack and M-series monitor modules before installation.
• Correct I/O Module: The 288055-01 module must be matched with the appropriate 3500/22M I/O module.
• Rack Position: The TDI normally occupies Slot 1 of the 3500 rack.
• Upgrade Precaution: When replacing a 3500/20 RIM with a 3500/22M TDI, the old RIM and RIM I/O must be removed before installing the TDI I/O and TDI. Incorrect installation can damage the TDI.
• USB Grounding: Use the specified Bently Nevada USB cable and observe grounding requirements to prevent ground-loop problems.
• Environmental Conditions: Keep the installation within the specified temperature and humidity limits.
• Dynamic Data: High-resolution dynamic/transient waveform collection requires the appropriate Dynamic Data Enabling Disk configuration.
