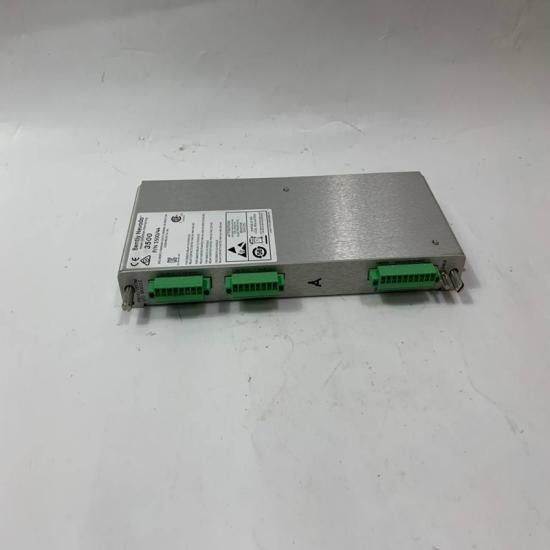

BENTLY 133300-01 Communication Module Product Information

Model: 133300-01
Brand: BENTLY NEVADA
Product Type: Low Voltage DC Power Input Module (PIM)
Series: 3500 Machinery Protection System
Application: Provides DC power input interface for Bently Nevada 3500 monitoring racks.

Note: The model 133300-01 is not a Communication Module. It is a 3500/15 Low Voltage DC Power Input Module used with the 3500 power supply system. Communication modules in the 3500 series are typically models such as 3500/92 Communication Gateway (e.g., 136180-01 / 133323-01).

Technical Specifications

• Product Type: Low Voltage DC Power Input Module (PIM)
• Series: Bently Nevada 3500/15 Power Supply System
• Model: 133300-01
• Function: Provides low-voltage DC input connection for 3500 power supply modules
• Input Voltage:
  • 20…30 V DC nominal
  • Compatible with 24 V DC industrial power systems
• Power Supply Compatibility:
  • 3500/15 Low Voltage DC Power Supply Module
• Rack Installation:
  • Installed in dedicated power supply position on 3500 rack
• Redundancy Support:
  • Supports dual power supply configurations
• Protection:
  • Input fuse protection
  • Voltage fault protection
• Operating Temperature: -30…65 °C
• Storage Temperature: -40…85 °C
• Humidity: Up to 95% RH, non-condensing
• Mounting: Bently Nevada 3500 rack mounting system

Advantages & Features

Reliable DC Power Interface

Provides a stable connection between external DC power sources and the 3500 system power supply module.

Supports Redundant Power Design

Allows installation of dual power supplies to improve system availability and prevent monitoring interruptions.

Industrial-Grade Protection

Includes protective design features to improve reliability under industrial operating conditions.

High System Compatibility

Designed specifically for Bently Nevada 3500 machinery protection systems.

Easy Maintenance

Modular rack installation allows quick replacement and reduced downtime.

Applications

• Bently Nevada 3500 Machinery Protection Systems
• Turbine monitoring systems
• Compressor protection systems
• Generator condition monitoring
• Oil & gas equipment monitoring
• Power plant machinery protection
• Industrial rotating equipment monitoring systems

Precautions

• Confirm compatibility with the correct Bently Nevada 3500/15 power supply module before installation.
• Do not confuse this module with 3500 communication modules.
• Verify DC input voltage before powering the system.
• Ensure correct polarity and grounding.
• Check fuse and wiring conditions during maintenance.
• Disconnect power before replacing the module.
• Installation should be performed by qualified technicians.
