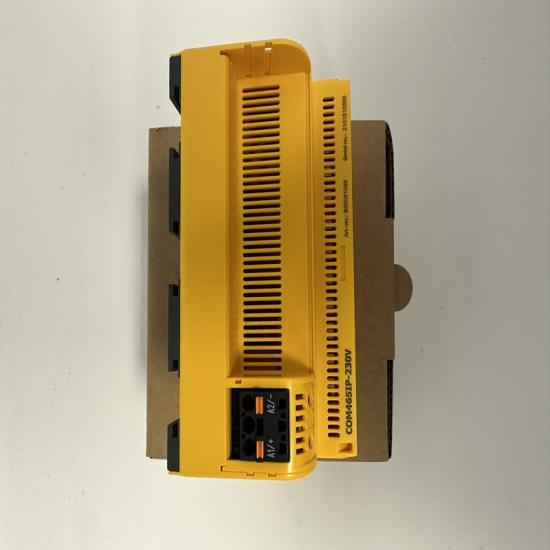

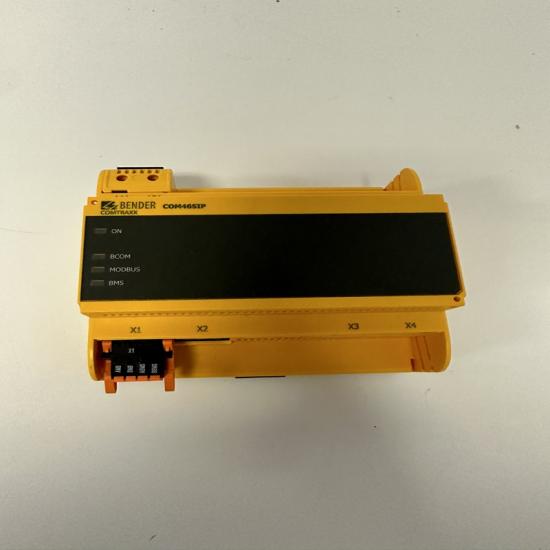

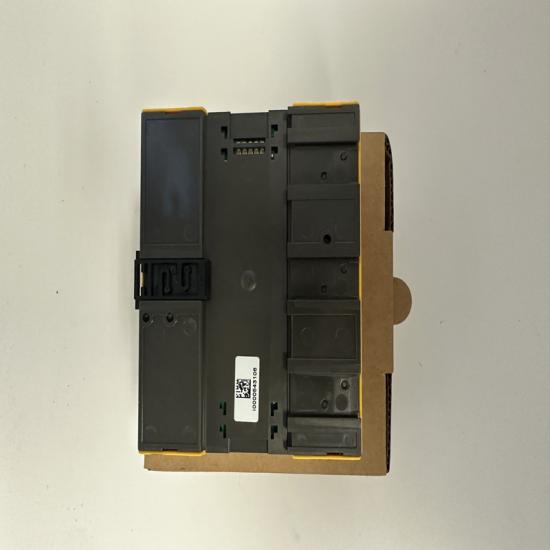

Bender COM465IP Communication Gateway

Bender COM465IP | COMTRAXX® Communication Gateway

Specifications

• Supply Voltage: AC/DC 24–240 V, 50/60 HzBender North America
• Power Consumption: ≤6.5 VA / ≤4 WBender North America
• Ethernet: 10/100 Mbps (Modbus TCP, SNMP, PROFINET, MQTT, BCOM)
• Serial: RS-485 (BMS bus, Modbus RTU)
• Device Capacity:
  • Internal BMS bus: 139 devices
  • External BMS bus: 98 × 139 devices
  • Modbus TCP/RTU: 247 devices each
• Web Interface: HTML5 (no local software required)
• Data Logging: 20,000 history entries; 30 × 10,000 configurable logs
• Operating Temp: -25 °C to +70 °C
• Mounting: DIN rail
• Weight: ~0.4 kg

Key Features

1. All-in-One Gateway: Bridges BMS/BCOM/Modbus to Ethernet (Modbus TCP/SNMP/PROFINET)。
2. Centralized Monitoring: Web-based dashboard for EDS, RCMS, MEDICS, PEM systems。
3. Remote Access: Ethernet enables LAN/WAN/Internet connectivity。
4. Expandable: Function modules add email alerts, reporting, and advanced diagnosticsBender North America。
5. Third-Party Support: Integrates up to 50 Modbus RTU/TCP data points from other vendors。

Applications

• Bender system integration (EDS440, RCMS420, CTAC series)
• Industrial IT/NT power networks
• Renewable energy (PV/wind)
• Data centers, medical facilities
• Remote monitoring & maintenance
