B&R X20SO4120 Digital Output Module

Product Description

The B&R X20SO4120 is a safety-rated digital output (DO) module from the X20 I/O system, designed for industrial automation applications requiring SIL 3/PL e compliance. It features 4 safety outputs (Type A) with 2A current capacity per channel, supporting 24V DC for controlling relays, valves, and other safety-critical actuators. The module integrates current monitoring, open-circuit detection, and surge protection, making it ideal for emergency stop circuits, machine guarding, and process safety systems .

Key Features & Advantages

1. High Safety Compliance

   • SIL 3 (IEC 61508) and PL e (ISO 13849-1, Category 4) certified for critical applications .

   • Dual-channel diagnostics with <500µs response time (OSSD) for fault detection (e.g., short-circuit, open-wire) .

2. Robust Output Design

   • 4 outputs (Type A): Each supports 2A (24V DC) with "high-side/low-side" switching for fail-safe disconnection .

   • Integrated current measurement for open-circuit detection (thresholds: <10mA = fault, >50mA = OK) .

3. Industrial Durability

   • 500V isolation between channels and backplane for noise immunity .

   • IP20 protection and wide temperature range (-25°C to +60°C) .

4. Easy Integration

   • Compatible with X20 12-pin terminal blocks and Automation Studio 3.0.71+ for configuration .

   • LED status indicators per channel for real-time diagnostics .

Technical Specifications

Applications

• Machine safety: Emergency stop systems, light curtains .

• Process control: Valve actuation in hazardous areas (ATEX) .

Installation Notes

• Use shielded cables for noise-sensitive applications .

• Ensure proper grounding to avoid EMI .

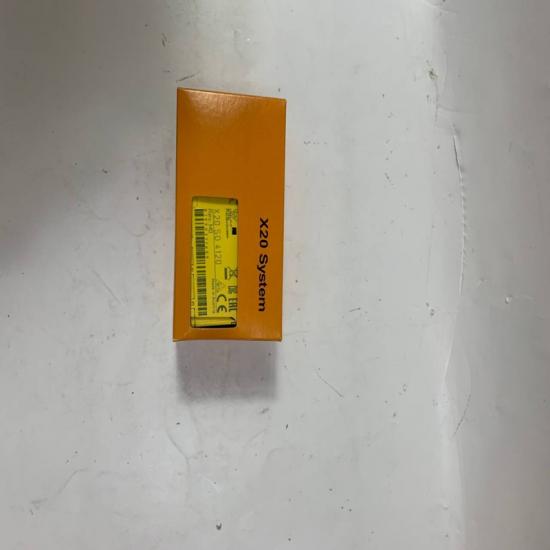

The structure and details of the product：
