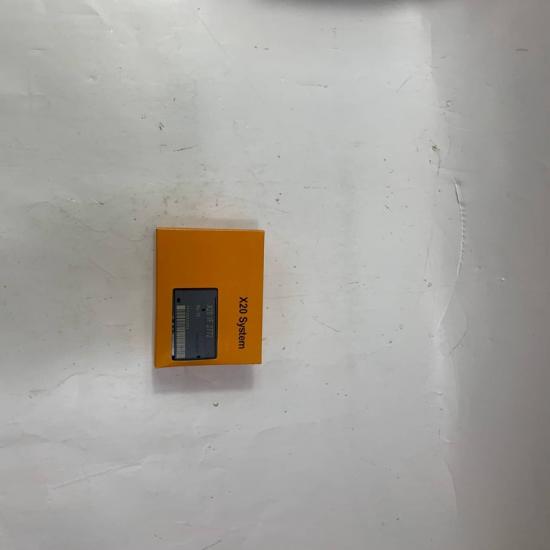

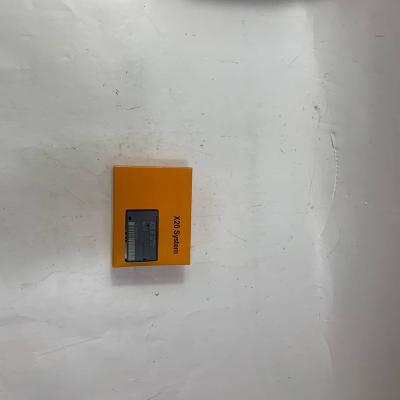

B&R X20IF2772 Interface Module

Product Description

The B&R X20IF2772 is a dual-CAN interface module designed for the X20 I/O system, enabling high-speed CAN bus communication (up to 1 Mbps) in industrial automation applications. It provides two electrically isolated CAN interfaces, making it ideal for connecting sensors, actuators, and other CAN-compatible devices in distributed control systems. This module is part of B&R’s modular X20 series, which supports flexible topologies for both control cabinet (IP20) and harsh environment (IP67) installations .

Key Features & Advantages

1. Dual-CAN Interface with Isolation

   • Two independent CAN channels, each supporting 1 Mbps communication speed .

   • 500V electrical isolation between CAN interfaces and the backplane, ensuring noise immunity .

2. Flexible Integration

   • Compatible with X20 CPU modules (e.g., X20CP0292) and distributed I/O systems via X2X Link .

   • Hot-swappable in supported configurations, reducing downtime during maintenance .

3. Industrial Durability

   • IP20 protection for control cabinet installations .

   • Operating temperature range: -25°C to +60°C, suitable for harsh industrial environments .

4. Easy Installation

   • Requires two TB2105 terminal blocks (sold separately) for wiring .

   • LED status indicators for real-time monitoring of CAN bus activity and errors .

Technical Specifications

Applications

• Factory automation: CAN-based sensor/actuator networks .

• Motion control: Integration with servo drives and encoders .

• Process industries: Monitoring and control of CAN-enabled devices .

Installation Notes

• Wiring: Use shielded twisted-pair cables for CAN bus connections to reduce EMI .

• Termination: Ensure 120 Ω resistors are installed at each end of the CAN bus .

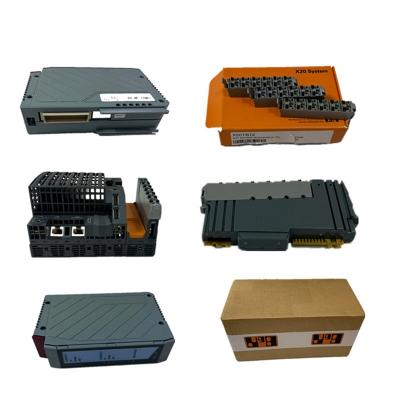

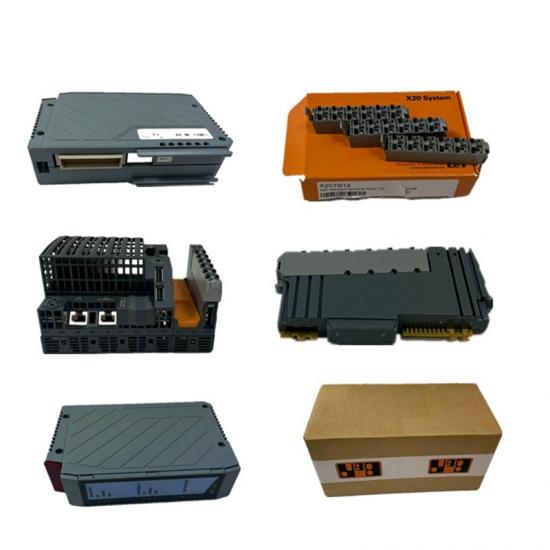

The structure and details of the product：
