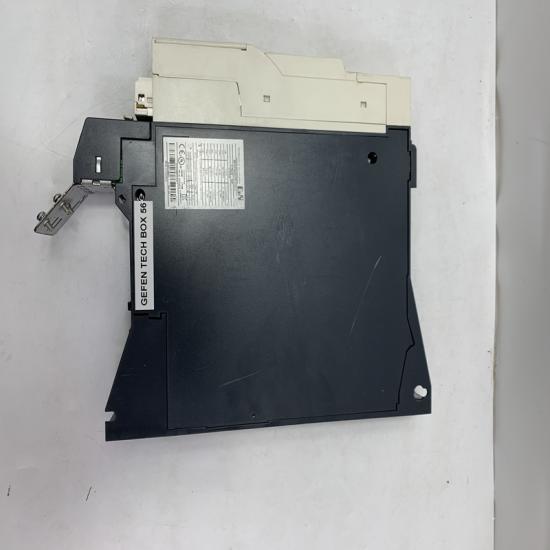

B&R X20CP1584 PLC CPU Controller Module

Overview

Key Specifications

1. Processor: Intel Atom E620T 600MHz + dedicated I/O co-processor
2. Memory: 256MB DDR2 + 1MB SRAM; CompactFlash slot for program storage
3. Standard Interfaces

• 1× Gigabit Ethernet, 1× POWERLINK real-time bus
• 2× USB 2.0, 1× RS232, X2X Link backplane for X20 I/O modules
• 1 expansion slot for optional communication cards

4. Power: 24VDC supply, DIN rail mounting
5. Environment: IP20, -25°C ~ +60°C operating temp, CE/UL/ATEX Zone 2 certified
6. Dimension: 150(W) × 99(H) × 85(D) mm, weight 400gB& R Industrial Automation

Core Functions

1. Execute PLC logic, sequence control and closed-loop motion algorithms
2. Real-time data exchange with X20 DI/DO/AI/AO I/O modules via X2X Link
3. Synchronize multiple ACOPOS servo drives over POWERLINK bus
4. Upload/download programs via Ethernet/USB, store projects on CF card
5. Full system self-diagnosis with run/fault LED indicators

Applications
