B&R X20CM0289 Compact Multifunction I/O Module

We will arrange delivery within 3-5 days after receiving the payment.

Our express delivery: DHL and FedEx.

Quality packing for each product

Destination country all taxes & duty to be paid by buyer

Only part of the brand and model, if you have other product needs, please contact us.

B&R X20CM0289 Compact Multifunction I/O Module

Product Overview

The B&R X20CM0289 is a compact multifunction I/O module designed for industrial automation systems. It integrates digital inputs, analog inputs, and PWM outputs into a single module, making it ideal for applications requiring high-density signal processing in a compact form factor. The module is part of B&R’s X20 distributed I/O system, offering seamless integration with POWERLINK, Ethernet, and CAN-based control networks.

Key Features & Technical Specifications

1. I/O Configuration

• 8 digital inputs (24V DC, sink-type/NPN)

  • Input voltage: 24V DC (-15% to +20%)

  • Input current: 3.75 mA (typical)

  • Filtering: Configurable (0–25 ms in 0.2 ms steps)

• 2 analog inputs (0–10V / 0–20 mA, 12-bit resolution)

  • Sampling rate: 1 ms per channel

  • Isolation: 500V between channels and bus

• 4 PWM outputs (24V DC, 0.2 A, 200 kHz max.)

  • Duty cycle resolution: 16-bit

  • Supports ABR encoder input for motion control

2. Communication & Integration

• X2X Link interface for high-speed I/O expansion

• Compatible with POWERLINK V2, Ethernet, and CAN for distributed control

• Hot-swappable design for maintenance without system shutdown

3. Environmental & Mechanical Specs

• Operating temperature:

  • Horizontal mounting: -25°C to +60°C

  • Vertical mounting: -25°C to +50°C

• Protection rating: IP20 (dust-resistant)

• Shock resistance: 55G (RMS) for harsh environments

4. Certifications

• CE, UL, ATEX (Zone 2), DNV, ABS, BV

• Compliant with IEC 61131-3 for industrial programming standards

Applications

1. Industrial Automation – High-speed signal processing for packaging, printing, and CNC machines.

2. Energy Systems – Monitoring and control in turbine and power distribution systems .

3. Motion Control – PWM-based servo drives and encoder feedback for precise positioning .

4. Process Control – Analog signal acquisition in chemical and water treatment plants .

Installation & Usage Notes

1. Mounting: Requires X20TB12 terminal block for wiring .

2. Power Supply: Ensure stable 24V DC input (±15%) to avoid signal noise .

3. Configuration: Use B&R Automation Studio for I/O mapping and filter settings .

4. Maintenance: Regularly check status LEDs for fault diagnostics

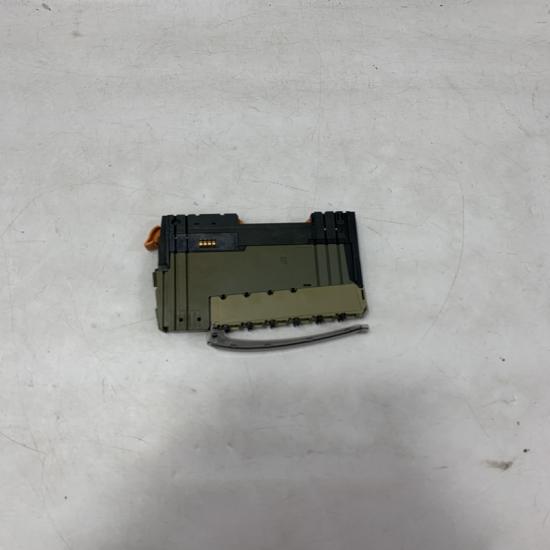

The structure and details of the product：

 Please make an inquiry for more models

B&R 8I74T400037.010-1

B&R ECEP128-0

B&R ECCP70-01

B&R MCGE31-0

B&R ECPA81-2

B&R MDA115-0

B&R 2BM100.9

B&R 2CP100.60-1

B&R 2DS100.60-1

B&R 4P3040.01-490

B&R DI426.6

B&R ECA162-01

B&R ECCP60-01

B&R ECE161-0

B&R ECE243-0

B&R ECNT43-0

B&R 8I74T400037.010-1

B&R ECPE84-2

B&R ECPNC3-0

B&R X20BM15

B&R X20BR9300

B&R ECR165-0

B&R 3AM051.6

B&R 3AI775.6

B&R 3NC150.6

B&R 3TB170.9

B&R 3AI375.6

B&R 3DI477.6

B&R 3DO480.6

B&R 3IF681.96

B&R 3PS465.9

B&R 3CP153.9

B&R 5D5212.01

B&R 3BP155.41

B&R PROVIT 5200

B&R 3NC154.60-2

B&R 3AM051.6

B&R 3CP153.9

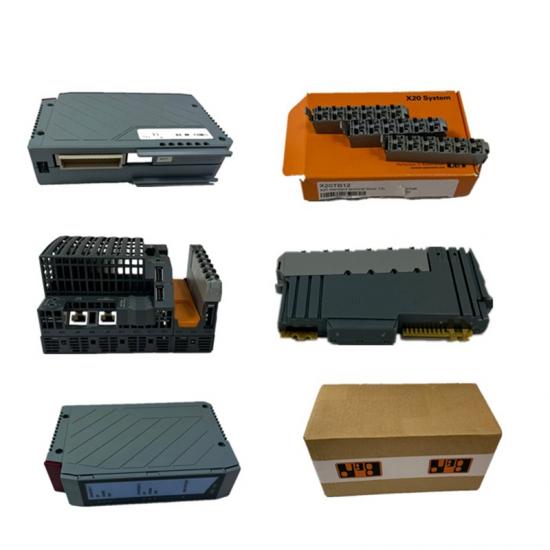

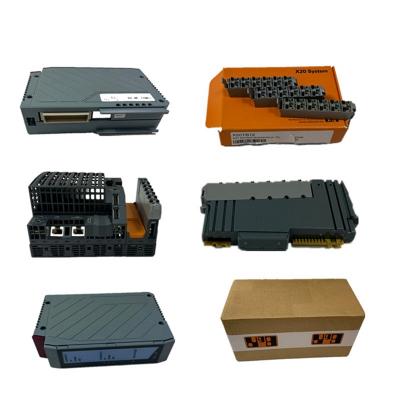

 Other best-selling products：
