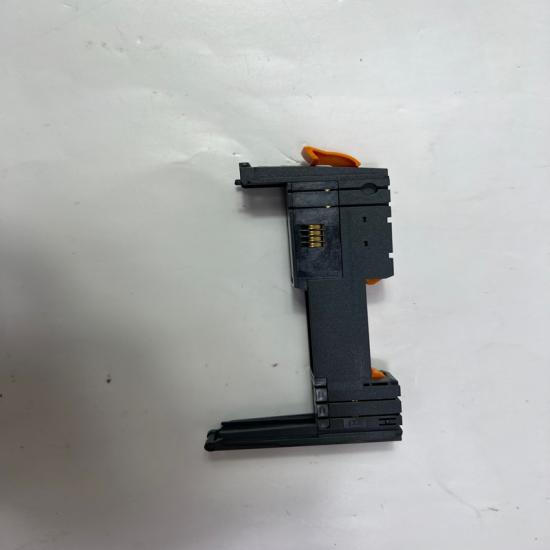

B&R X20AO4632 Analog Output Module

B&R X20AO4632

Analog Output Module

Specifications

• Channels: 4 analog outputs (independent)B& R Industrial Automation
• Signal Ranges: ±10 V DC or 0–20 mA (selectable via terminals)B& R Industrial Automation
• Resolution: 16‑bit (voltage: ±15‑bit; current: 15‑bit)
• Conversion Time: 50 μs (all channels)
• Settling Time: 500 μs (full‑range step)
• Load Capacity: Voltage: ≥5 kΩ; Current: ≤500 Ω
• Isolation: 500 V between field side and bus
• Protection: Short‑circuit protected (current limit ±40 mA)
• Operating Temp: −25°C to +60°C (horizontal mounting)
• Mounting: 35 mm DIN rail, hot‑swappable
• Protection Class: IP20
• Power Consumption: Bus: 0.01 W; I/O: 1.2 W

Key Features

• High Precision: 16‑bit resolution, non‑linearity <0.007%
• Fast Response: 50 μs conversion, 500 μs settling for high‑speed control
• Dual‑Range: Selectable voltage/current output reduces spare partsB& R Industrial Automation
• Robust Protection: Short‑circuit and overload protection
• Hot‑Swap: Replace module without system shutdown

Applications

• Process Control: Drives, valves, actuators, and analog‑controlled devices
• Machine Automation: Packaging, plastics, textile, and printing machinery
• Motion Control: Analog setpoint signals for servo drives and frequency converters
