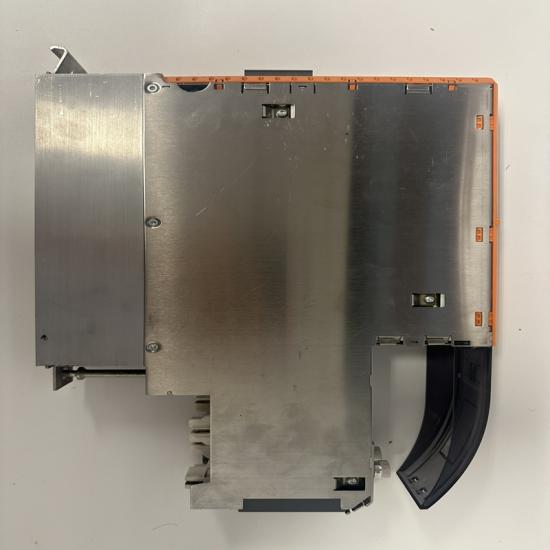

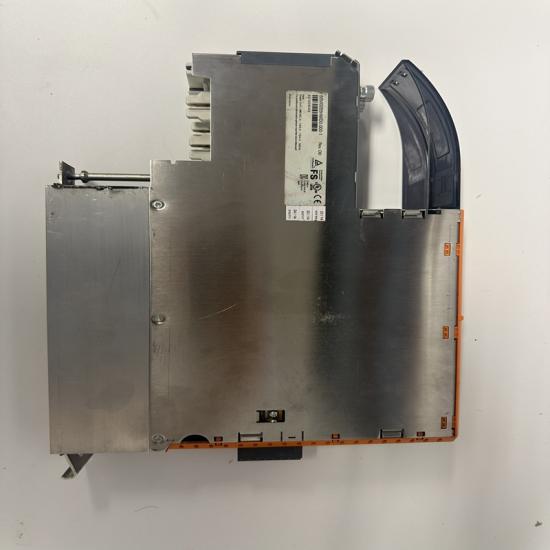

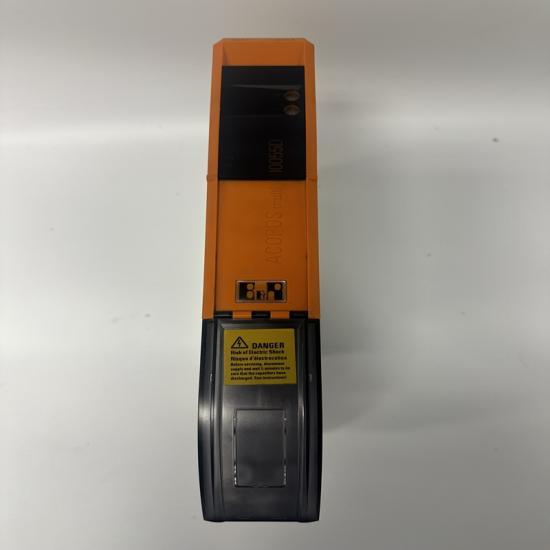

B&R 8BVI0055HWD0.000-1 | ACOPOSmulti 2-Axis Servo Drive

Specifications

• Input Voltage: 400–480 V AC (3-phase, HV)
• Output: 2 independent axes, 7.6 A continuous per axis
• Mounting: Wall-mount (HWD)；cold plate/feed-through optional
• Dimensions (W×H×D): 53 × 317 × 263 mmB& R Industrial Automation
• Weight: ~2.9 kgB& R Industrial Automation
• Protection: IP20 (pollution degree 2, overvoltage category III)B& R Industrial Automation
• Operating Temp: 5 °C to +40 °C (max +55 °C)B& R Industrial Automation
• Safety: Integrated Safe Stop, motor brake & temp sensor connections

Key Features

1. Dual-axis design: Two fully independent inverters in one module.
2. High power density: 7.6 A continuous current for demanding motion tasks.
3. Flexible mounting: Wall, cold plate, or feed-through cooling options.
4. Safety integrated: Safe Stop + brake/temp sensor terminals reduce wiring.
5. Modular expansion: 2 slots for ACOPOSmulti plug-in modules.

Applications

• Multi-axis machines: plastics, packaging, printing, textile.
• High-precision motion control: robotics, machine tools, handling systems.
• Projects needing compact, wall-mounted servo solutions.
