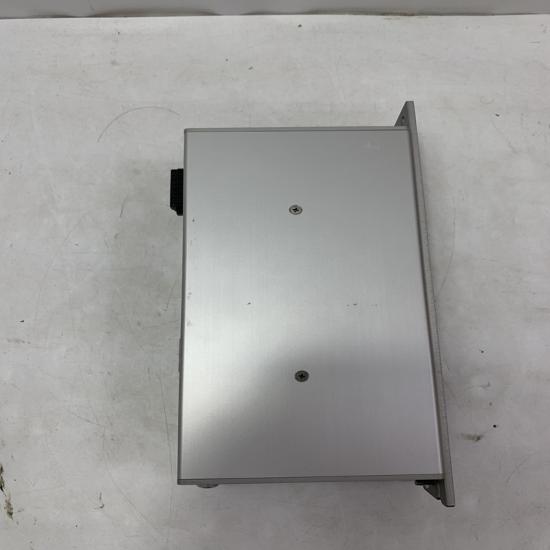

B&R 5PC725.1505-01 Industrial Panel PC





Product Overview

The B&R 5PC725.1505-01 is an industrial Panel PC (HMI + embedded controller) from the B&R 5PC700 series. It combines:

• 15-inch industrial touchscreen HMI
• Embedded Intel-based industrial PC controller
• Multiple communication interfaces for automation systems
• Fanless rugged design for 24/7 operation

It is widely used in machine control, SCADA visualization, and industrial automation systems.

Key Specifications

• Brand: B&R Industrial Automation
• Model: 5PC725.1505-01
• Series: Panel PC 725 (5PC700 series)
• Display: 15" TFT color LCD
• Resolution: 1024 × 768 (XGA)
• Touch Type: Analog resistive touchscreen
• Operating Voltage: 24 VDC ±25%
• Power Consumption: ~28.5 W
• CPU Platform: Intel Atom / Celeron class (variant dependent)
• RAM: Up to 2 GB DDR2/DDR3 (config dependent)
• Storage: CF / HDD / SSD options available
• Interfaces:
  • 2 × Ethernet (10/100 Mbps)
  • 3 × USB 2.0
  • 1 × RS232 serial
• Protection: IP65 front panel
• Operating Temp: 0–50°C
• Mounting: Panel mounting (industrial cabinet front)

Key Features

• All-in-one HMI + Industrial PC controller
• Rugged IP65 industrial front design
• Fanless operation for long-term stability
• Multiple industrial communication ports
• Designed for continuous 24/7 operation
• Compatible with B&R Automation Studio / industrial control systems

Advantages

• Reduces need for separate IPC + HMI hardware
• High reliability in harsh industrial environments
• Stable long-term lifecycle support (legacy + OEM machines)
• Easy integration into B&R automation ecosystems
• Service-friendly modular hardware design

Applications

• Industrial machine control systems
• SCADA / HMI visualization stations
• Packaging and production lines
• CNC and automation machinery
• Factory process monitoring systems
• OEM equipment integration

Precautions

• Ensure correct 24 VDC stable power supply
• Not all variants are identical (CPU/RAM/storage may differ)
• Use proper grounding to avoid EMI issues
• Front panel IP65 only when properly installed with seal
• Backup system image before replacement
•
