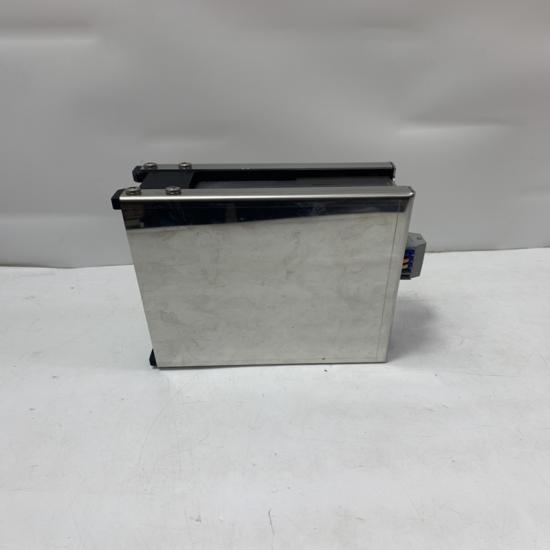

B&R 3CP153.9 Power Panel Controller (CPU Module)

Product Overview

The B&R 3CP153.9 is a System 2005 CPU / Power Panel Controller module from B&R Industrial Automation. It is used as a central control processor (PLC CPU) in compact industrial automation systems.

This module is not a simple I/O card — it is a standalone PLC CPU with communication interfaces, designed for machine-level control and distributed automation tasks.

Key Specifications

• Brand: B&R Industrial Automation
• Model: 3CP153.9
• Series: System 2005
• Type: PLC CPU / Power Panel Controller
• Processor Architecture: Industrial control CPU (System 2005 platform)
• Memory: 64 kB RAM + 256 kB SRAM
• Communication Interfaces:
  • 1 × RS232
  • 1 × isolated RS485 / RS422 / TTY
• Network Capability: RS485/RS422 fieldbus support
• Application Memory: External memory required (ordered separately)
• Mounting: Panel / rack system (System 2005 architecture)
• Industrial Grade: Designed for harsh automation environments

Advantages & Features

• Compact PLC CPU with built-in communication ports
• Stable operation for legacy B&R System 2005 machines
• Supports serial fieldbus integration (RS485 networks)
• Modular design for machine control systems
• Reliable long-life industrial hardware
• Suitable for retrofit and spare replacement markets

Applications

• Industrial machine control systems
• Packaging machinery
• Conveyor and handling systems
• Textile and printing machines
• Legacy B&R automation systems (System 2005)
• OEM equipment maintenance and replacement

Precautions

• Must match System 2005 architecture compatibility
• Application memory may need to be separately installed
• Not compatible with modern X20 / Automation Studio systems directly
• Ensure correct firmware/project backup before replacement
• Handle carefully (older module, sensitive connectors)
• ESD protection required during installation
