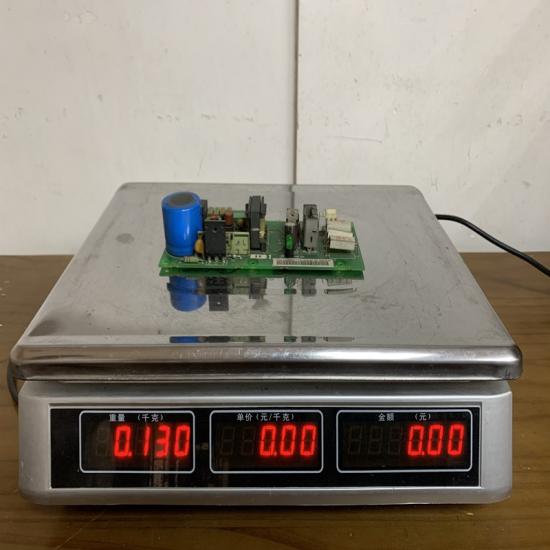

ABB ZINT-592 3AUA0000103603 Inverter Power Board

• Input Voltage: 380-480 V AC (3-phase, 50/60 Hz); compatible with low-voltage industrial power grids​

• DC Output Voltage: Regulated 540-650 V DC (for inverter IGBT modules); auxiliary 24 V DC / 5 V DC (for control circuits)​

• Max Output Power: 15 kW (continuous; 20 kW peak, 10 seconds max for load surges)​

• Conversion Efficiency: Up to 96% (at 50-100% load; reduces energy loss in long-term operation)​

• Ripple Voltage: ≤2% (DC output; ensures stable power supply for IGBTs)​

• Protection Mechanisms:​

• Overcurrent protection (OCP): Trip current 120% of rated; auto-recovery after fault removal​

• Overvoltage protection (OVP): Latching shutdown at 700 V DC (resets via power cycle)​

• Over-temperature protection (OTP): Shutdown at 85°C (auto-recovery at 75°C)​

• Short-circuit protection (SCP): Current-limited mode (prevents IGBT/control board damage)​

• Isolation: 3 kV AC between input AC and output DC; 2 kV AC between power circuits and control circuits​

• Dimensions: 220×160×40 mm (Length×Width×Height); fits ABB standard VFD enclosures​

• Mounting: Screw-mounting to drive chassis (compatible with ABB drive frame sizes 2-4)​

• Cooling: Forced-air cooling (compatible with drive-integrated fans; thermal resistance <0.5°C/W)​

• Operating Temperature: -20°C ~ +70°C (derates 3% per °C above 60°C)​

• EMC Compliance: EN 61000-6-2 (industrial immunity); EN 61000-6-4 (industrial emissions)​

• Manufacturing: Powers ABB ACS880 drives for conveyor motors, robotic arms, and CNC machine spindles​

• Energy Sector: Supplies power to inverters in wind turbine converters and solar PV string inverters​

• Material Handling: Supports VFDs for crane hoist motors and elevator drive systems​

• Process Control: Drives pumps, fans, and compressors in chemical/petrochemical plants (ensures stable speed control via reliable power supply)​

• Mount on ABB drive chassis using M4 screws (torque 0.8-1.0 N·m); ensure alignment with drive’s cooling airflow​

• Connect 3-phase AC input to L1/L2/L3 terminals; DC output to IGBT module terminals (follow ABB drive wiring diagram for polarity)​

• Power off the entire drive system before installation; verify input voltage matches board specs to avoid damage​

• Check status LEDs monthly (green = normal; red = overcurrent/overvoltage/overtemp fault)​

• Inspect capacitors quarterly (no bulging/leakage); clean board surface with dry compressed air (remove dust to prevent overheating)​

• Measure DC output voltage with a multimeter (ensure it stays within 540-650 V DC; abnormal values indicate component degradation)​

• Replace the board if faults persist after power cycle and wiring check (avoid disassembling internal components—voids warranty)
