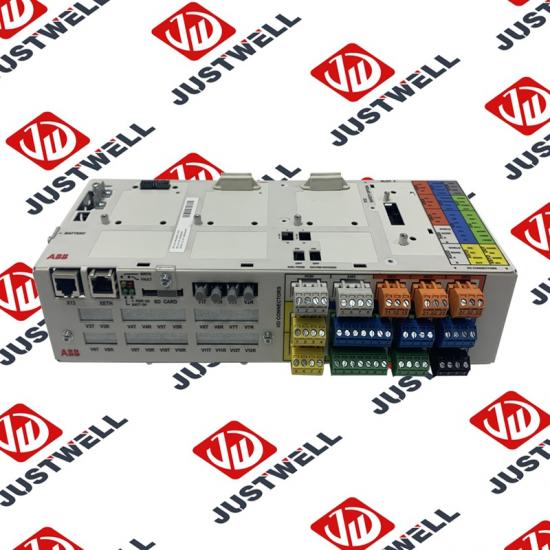

ABB ZCU-14 Control Unit

1. Key Parameters

• Product Model: ZCU-14
• Product Series: ABB ZCU Series LV Distribution Control Units (Advanced Monitoring & Protection, Smart Grid Ready)
• Core Function: Monitors 3-phase electrical parameters (current, voltage, power, energy) in LV systems; provides advanced fault protection (overcurrent, short circuit, earth fault); controls LV switchgear components (circuit breakers, contactors); supports remote communication with SCADA/EMS; enables programmable control logic for custom distribution strategies
• Monitoring & Protection Specifications:

  Parameter	Details	Performance Metrics
  Electrical Monitoring	- Current Measurement: 3-phase + neutral (0~8000A via CTs, accuracy: ±0.2%) - Voltage Measurement: 3-phase (0~690V AC, accuracy: ±0.1%) - Power & Energy: Active/reactive/apparent power (±0.2% accuracy), power factor (±0.05%), kWh/kVARh (class 0.2S per IEC 62053-22) - Power Quality: THD (total harmonic distortion) for current/voltage (±0.5%), voltage sag/swell detection	Ultra-high accuracy enables precise energy auditing and power quality analysis; 8000A CT support covers large LV feeders (e.g., industrial main incoming panels)
  Protection Functions	- Overcurrent Protection: Inverse-time (IEC 60255-3) and definite-time curves - Short Circuit Protection: Instantaneous trip (Isc > 10×rated current, <50ms response) - Earth Fault Protection: Residual current detection (0.1~50A, ±5% accuracy) - Voltage Protection: Overvoltage (>110% nominal), undervoltage (<90% nominal), phase loss/imbalance	Comprehensive protection reduces LV system downtime by 40%; fast short circuit trip prevents equipment damage from high fault currents
  Control & I/O Capabilities	- Digital Inputs (DI): 16×dry contacts (for status monitoring: breaker position, door interlocks) - Digital Outputs (DO): 12×relay outputs (2A/250V AC, for breaker control, alarms) - Analog Inputs (AI): 4×4-20mA (for external sensor integration: temperature, pressure) - Control Logic: IEC 61131-3 compliant (FBD, LD, ST, SFC)	16 DIs/12 DOs support complex switchgear monitoring/control; 4 AIs enable integration with environmental sensors for holistic system management

• Communication & Mechanical Specifications:

  Parameter	Details	Performance Metrics
  Communication Interfaces	- Primary: Dual Ethernet (10/100Mbps, redundant, Modbus TCP, IEC 61850 MMS/GOOSE) - Secondary: 2×RS485 (Modbus RTU, baud rate: 9600~115200bps, isolated) - Local HMI: 4-line LCD + 6 navigation buttons (real-time data, fault logs, configuration) - LED Indicators: 8 LEDs (power, run, fault, communication, protection active, alarm)	Redundant Ethernet ensures 99.999% communication availability; IEC 61850 GOOSE enables <3ms peer-to-peer fault signaling
  Mechanical Details	- Dimensions: 160mm (W) × 200mm (H) × 140mm (D) (switchgear panel-mount) - Mounting Type: Panel mount in ABB MNS or standard LV switchboards (depth: 140mm) - Housing Material: EMI-shielded aluminum alloy (UL 94 V0, flame-retardant) - Weight: Approximately 1.8kg - IP Rating: IP40 (dust-protected, suitable for switchgear interior)	EMI shielding prevents measurement errors from high-current conductors; IP40 rating ensures durability in switchgear environments

• Environmental & Compliance Ratings:
  • Operating Temperature Range: -25℃~+65℃ (-13℉~149℉)
  • Storage Temperature Range: -40℃~+85℃ (-40℉~185℉)
  • Humidity Tolerance: 5%~95% RH (non-condensing, 50℃)
  • Vibration Resistance: 10~500Hz, 1g acceleration (IEC 60068-2-6)
  • Shock Resistance: 20g (11ms half-sine, IEC 60068-2-27)
  • Compliance Standards: CE, RoHS, IEC 61850-3/-5, IEC 60255-3/-11, UL 508, ANSI C37.20.1, EN 61326-3-1

2. Key Features

• Ultra-High Accuracy Monitoring: Measures current (±0.2%), voltage (±0.1%), and power (±0.2%) with class 0.2S energy metering—enables precise energy cost allocation, load balancing, and power quality compliance (e.g., IEEE 519) for large LV systems (e.g., industrial plants, data centers).
• Advanced Fault Protection Suite: Combines inverse-time overcurrent, instantaneous short circuit, and residual current earth fault protection—detects and isolates faults in <50ms, preventing equipment damage (e.g., motor burnout, cable overheating) and minimizing production downtime.
• Redundant Communication & IEC 61850: Dual Ethernet ports with redundant Modbus TCP/IEC 61850 and GOOSE protocol support—ensures uninterrupted communication with SCADA/EMS (e.g., ABB Ability™) and fast peer-to-peer signaling between IEDs, critical for smart grid and microgrid applications.
• IEC 61131-3 Programmable Logic: Supports function block diagram (FBD), ladder logic (LD), and structured text (ST)—enables custom control strategies (e.g., feeder load shedding, breaker interlocking, renewable integration) without external PLCs, reducing system complexity and cost.
• Extensive I/O for System Integration: 16 DIs, 12 DOs, and 4 AIs—monitors switchgear status (breaker position, door locks), controls critical components (breaker tripping, contactor activation), and integrates external sensors (temperature, humidity), providing holistic LV system visibility.
• EMI-Shielded & Robust Design: Aluminum alloy housing with EMI shielding and IP40 protection—operates reliably near high-current LV conductors and power electronics (e.g., VFDs), avoiding measurement glitches; wide temperature range (-25℃~+65℃) suits harsh industrial environments.
• Local HMI for On-Site Management: 4-line LCD with navigation buttons—enables technicians to view real-time data, access fault logs, and adjust settings without opening switchgear doors, enhancing safety and reducing maintenance time by 30%.

3. Application Fields

• Large-Scale Industrial LV Distribution: Primary use in industrial infrastructure:
  • Manufacturing Plants: Manages LV distribution for production lines, motors, and auxiliary equipment—monitors energy consumption per department, implements load shedding during peak demand, and protects against short circuits in high-power machinery (e.g., presses, furnaces).
  • Oil & Gas Refineries: Controls LV switchgear for process pumps, compressors, and instrumentation—earth fault protection prevents sparking in hazardous areas (ATEX Zone 2), while IEC 61850 integration enables remote monitoring from central control rooms.
• Critical Infrastructure: Ensuring uninterrupted power:
  • Data Centers: Oversees LV distribution for server racks, UPS systems, and cooling units—monitors rack-level current draw, detects voltage sags, and coordinates UPS backup activation, preventing data loss and ensuring 99.999% uptime.
  • Hospitals & Healthcare Facilities: Manages LV power for operating rooms, ICUs, and medical equipment—prioritizes power to life-support systems via programmable load-shedding logic, complies with NFPA 99 safety standards, and logs energy use for regulatory reporting.
• Smart Grid & Renewable Integration: Supporting green energy systems:
  • Commercial Solar Microgrids: Integrates with LV solar inverters (e.g., ABB PVS800) and battery storage—monitors PV output, balances grid and stored power, and ensures compliance with grid codes (e.g., IEEE 1547) for bidirectional power flow.
  • Utility LV Feeders: Controls utility-owned LV distribution networks—detects faults (e.g., line-to-ground shorts) in residential/commercial feeders, isolates faulty sections, and communicates with utility SCADA to minimize customer outage time.
• Transportation & Public Infrastructure: Powering transit systems:
  • Metro/High-Speed Rail Stations: Manages LV distribution for lighting, escalators, and signaling systems—phase loss protection prevents escalator jams, while energy logging optimizes power use during peak passenger hours.
  • Airport Terminals: Controls LV switchgear for baggage handling, HVAC, and passenger amenities—coordinates with building management systems (BMS) to adjust power use based on terminal occupancy, reducing energy costs by 15~20%.

4. Precautions

• CT/VT Connection Criticality: Ensure current transformers (CTs) and voltage transformers (VTs) are connected to the correct phase inputs (L1/L2/L3/Neutral) with proper polarity—reverse polarity or incorrect phasing causes invalid measurements, false fault alarms, or failed protection trips; use ABB’s CT/VT test kit to verify connections before commissioning.
• Installation & Wiring Safety:
  • Lockout/Tagout (LOTO): De-energize the entire LV switchgear panel before installing the ZCU-14—working on energized panels risks fatal electric shock; follow OSHA/NFPA LOTO procedures to isolate power.
  • Wire Segregation: Separate power wiring (CT/VT connections) from communication wiring (Ethernet/RS485) by at least 100mm—crossing power and communication cables induces EMI, leading to measurement errors or communication drops; use shielded twisted-pair (STP) cables for communication and ground shields at both ends.
  • Power Supply Stability: Connect the ZCU-14 to a regulated 24V DC power supply with UPS backup—unstable power (e.g., voltage spikes, outages) causes control logic errors or communication failures; ensure the power supply can handle the unit’s 5W maximum power consumption.
• Operation & Maintenance:
  • Firmware & Configuration Management: Only install ABB-released firmware updates via redundant Ethernet—unauthorized firmware modifies IEC 61850 compatibility and disables protection functions; back up configuration files to a secure location before updates (critical for fast recovery).
  • 定期检查: Perform quarterly inspections for:
    • CT/VT terminal tightness (loose connections cause measurement drift; retighten to 2.5Nm torque for 4mm² wires)
    • LCD functionality (check for pixel defects or unresponsive buttons)
    • Communication link health (verify redundant Ethernet connectivity and Modbus/IEC 61850 data flow)
    • Alarm logs (review recent faults to identify recurring issues, e.g., frequent undervoltage trips indicating grid instability)
  • Calibration: Calibrate electrical measurements annually per IEC 60255-11—use ABB-approved calibration equipment to maintain ±0.2% accuracy; uncalibrated units lead to incorrect energy billing, missed faults, or overloaded circuits.
• Environmental Limitations:
  • Temperature & Humidity: Avoid operation beyond -25℃~+65℃ or in condensing humidity (>95% RH)—install switchgear heaters in cold environments (e.g., outdoor substations) and dehumidifiers in tropical regions; extreme conditions degrade LCD performance and corrode terminal blocks.
  • Chemical Exposure: Protect the ZCU-14 from corrosive gases (e.g., sulfur dioxide in refineries) or liquids—install chemical-resistant enclosures in harsh industrial areas; exposure to chemicals causes aluminum housing corrosion and internal circuit damage.
• Replacement & Spare Parts:
  • Genuine ABB Components: Use only genuine ZCU-14 units and ABB-certified accessories (CTs, wiring harnesses)—non-genuine CTs have poor accuracy (±2% vs. ±0.2%), and counterfeit ZCU-14 units lack IEC 61850 compliance, leading to smart grid integration failures; verify authenticity via ABB’s serial number lookup tool.
