ABB YT204001-CL YPP106B capacitor unit

We will arrange delivery within 3-5 days after receiving the payment.

Our express delivery: DHL and FedEx.

Quality packing for each product

Destination country all taxes & duty to be paid by buyer

Only part of the brand and model, if you have other product needs, please contact us.

ABB YT204001-CL YPP106B Capacitor Unit Product Overview

Introduction:

The ABB YT204001-CL YPP106B Capacitor Unit is a high-performance, reliable capacitor component used in industrial automation systems, particularly for power factor correction, energy storage, and voltage stabilization in various applications. This unit is designed to improve the efficiency of power systems by providing reactive power compensation, enhancing the overall power quality, and ensuring that industrial machinery operates at peak efficiency.

As part of ABB's extensive range of electrical components, the YPP106B capacitor unit plays a vital role in maintaining system stability, reducing energy consumption, and minimizing the risk of voltage fluctuations and power losses.

Key Specifications:

• Type: Capacitor Unit

• Rated Voltage: 400V (AC)

• Rated Frequency: 50/60Hz

• Capacitance: 106µF (Microfarads)

• Power Rating: Typically around 40–50kVAR (Varies based on configuration)

• Operating Temperature Range: -25°C to +60°C

• Humidity Range: 10% to 90% RH (non-condensing)

• Protection Rating: IP20 (suitable for indoor use)

• Dimensions: 250mm x 180mm x 120mm (varies by configuration)

• Weight: Approx. 3-4 kg

• Certifications: CE, UL certified

• Connection Type: Typically designed for connection to power factor correction systems, motor control centers, and electrical distribution networks

• Housing: Industrial-grade, durable housing for long-term operation

Features and Benefits:

1. Power Factor Correction:

   • The YPP106B capacitor unit is primarily used to correct the power factor in electrical systems, helping to reduce the burden on electrical infrastructure and improving overall system efficiency.

2. Energy Storage:

   • It provides effective energy storage to balance reactive power in electrical circuits. This helps maintain voltage stability across systems and reduces energy losses associated with reactive power consumption.

3. Voltage Stabilization:

   • By stabilizing the voltage within the system, the YPP106B capacitor unit helps to prevent voltage sags and surges, thereby protecting sensitive electrical equipment and ensuring smooth system operation.

4. High Efficiency:

   • The capacitor unit is designed for high efficiency, delivering excellent performance with low losses, which can result in significant energy savings over time.

5. Compact and Robust Design:

   • Despite its high power output, the YPP106B is compact and built with a durable, industrial-grade casing, making it easy to install in control panels or other compact spaces within control systems.

6. Long Lifespan:

   • The YPP106B capacitor unit is engineered for long-term reliability, providing stable and consistent operation over extended periods. Its design minimizes the risk of failures and reduces maintenance costs.

7. Electromagnetic Interference (EMI) Resistance:

   • The unit is designed with resistance to electromagnetic interference (EMI), ensuring that it operates efficiently even in environments where electrical noise might be present.

Applications:

1. Power Factor Correction in Industrial Systems:

   • The YPP106B capacitor unit is most commonly used for power factor correction in industrial environments where there is a need to balance reactive power. This helps to improve the efficiency of motors, transformers, and other heavy machinery.

2. Energy Efficiency Improvements:

   • In large industrial plants, factories, and data centers, the YPP106B helps reduce overall energy consumption by improving the power factor, ensuring that the power delivered is used efficiently.

3. Voltage Stabilization in Power Networks:

   • In power distribution systems, the YPP106B capacitor unit stabilizes voltage levels, preventing issues like voltage drops and surges that can damage sensitive electrical equipment.

4. Manufacturing and Automation:

   • In automated manufacturing plants, where large motors and machinery are in use, the capacitor unit helps ensure efficient power usage and maintains smooth operations, reducing downtime and optimizing energy consumption.

5. HVAC Systems:

   • HVAC systems, especially those with large motors and compressors, benefit from power factor correction and voltage stabilization, which enhances the overall energy efficiency of heating, ventilation, and air conditioning systems.

6. Motor Control Centers:

   • The YPP106B is commonly used in motor control centers for balancing reactive power and improving the overall power factor, ensuring efficient operation of motor-driven systems.

Installation and Maintenance Considerations:

1. Correct Wiring and Configuration:

   • Ensure that the YPP106B capacitor unit is properly wired according to the power distribution system's configuration. Incorrect connections could lead to malfunction or damage to the unit and other connected equipment.

2. Installation Location:

   • The unit should be installed in a dry, well-ventilated area within an electrical control panel or dedicated enclosure to avoid exposure to extreme temperatures or humidity.

3. Capacitance Maintenance:

   • Over time, capacitors may degrade, which can affect the efficiency of the power factor correction. Periodic testing of the unit's capacitance value ensures optimal operation and system performance.

4. Regular Inspection:

   • Perform periodic inspections to check for signs of damage or wear, including signs of overheating or physical damage to the capacitor unit housing. Replace any damaged or degraded components as soon as possible to maintain optimal performance.

5. Discharge Time:

   • After power is turned off, capacitors can hold charge for a period of time. Ensure that proper discharge procedures are followed before handling or servicing the capacitor unit.

6. Environmental Conditions:

   • The YPP106B capacitor unit is designed for indoor use. Ensure that it is not exposed to corrosive environments or extreme weather conditions that could degrade its performance and lifespan.

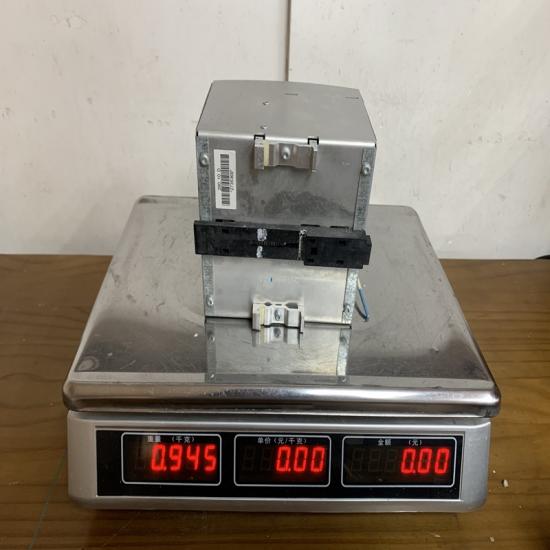

The structure and details of the product：
